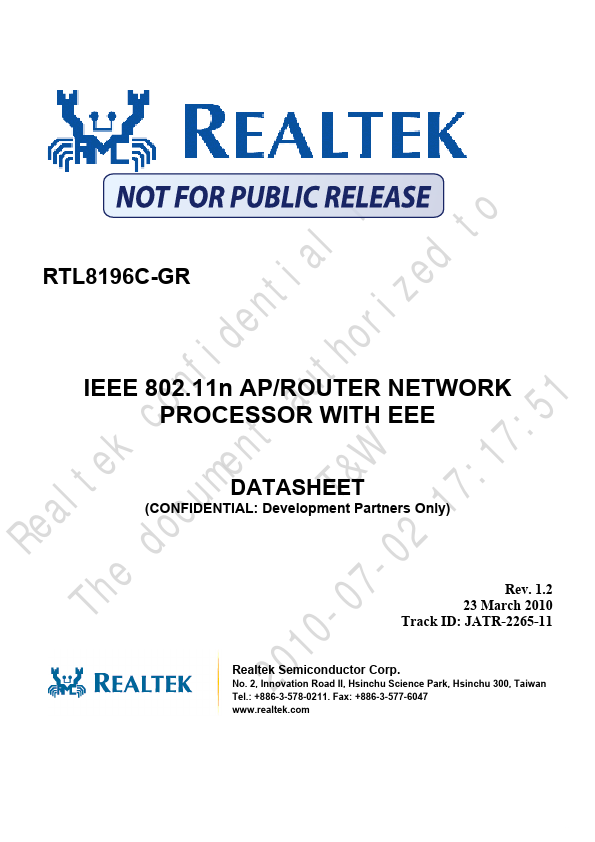

RTL8196C Datasheet PDF

Realtek RTL8196C

The RTL8196C is an integrated System-on-a-Chip (SoC) Application Specific Integrated Circuit (ASIC) that implements a basic L2 5-port Ethernet switch and a high performance CPU. The embedded RISC CPU is an RLX4181, and the clock rate can be up to 400MHz. l The RTL8196C provides five ports (from port 0 to port 4), integrated with five MAC and five physical i layer transceivers for 10Base-T and 100Base-TX.

Part No.	RTL8196C
Datasheet	RTL8196C Download
Manufacturer	Realtek
Description	IEEE 802.11n AP/ROUTER Network Processor
Buy	Stock & Price

GENERAL DESCRIPTION

To improve computational performance, a s 16-Kbyte I-Cache, 8-Kbyte D-Cache, 16-K I-MEM, and 8-Kbyte D-MEM are provided. A standard 5e signal P1149.1 compliant EJTAG test interface is supported for CPU testing and software development. Each port of the RTL8196C may be configured as a f o LAN or WAN port. t The RTL8196C supports flexible IEEE 802.3x full-duplex flow control and optional half-duplex l backpressure control. For full-duplex, standard IEEE 803.3x flow control will enable pause ability only a d when both sides of UTP have auto-negotiation ability and have enabled pause ability. The RTL8196C i e also provides optional forced mode IEEE 802.3x full-duplex flow control. Based on optimized packet memory management, the RTL8196C is capable of Head-Of-Line blocking prevention. nt iz L2 Switch

FEATURES

: The RTL8196C contains a 1024-entry address look-up table with a 10-bit 4-way e r XOR hashing algorithm for address searching and learning. Auto aging of each entr...
