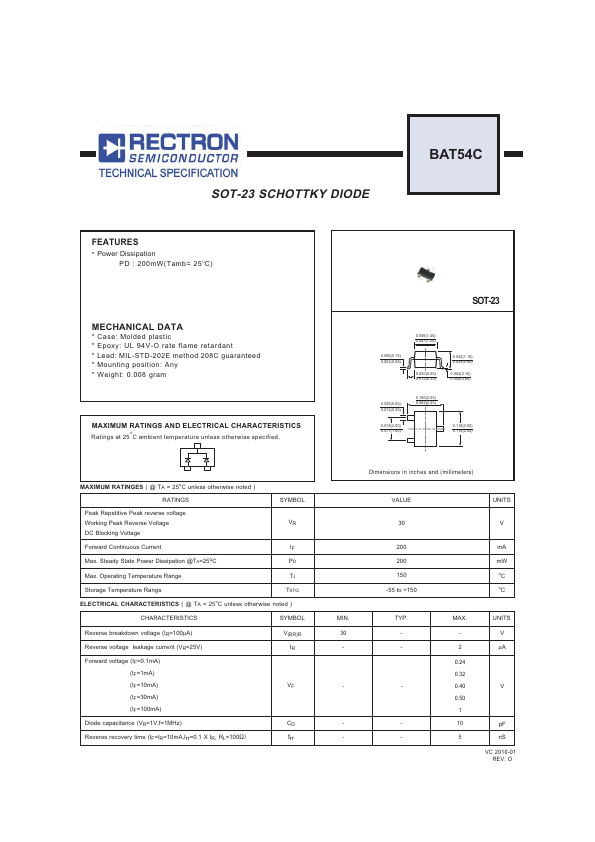

RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
BAT54C
DUAL SURFACE MOUNT SCHOTTKY
Absolute Maximun Ratings per Diode (Ta=25oC) Dimensions
SOTSOT-23 SOT-23
Items
Reverse Voltage Power Dissipation * Forward Voltage @ If = 100mA Forward Current Junction Temp. Storage Temp.
Symbol
VR PTOT VF IF TJ TSTG
Ratings
30 300 1.
