BAS316WSV Datasheet PDF

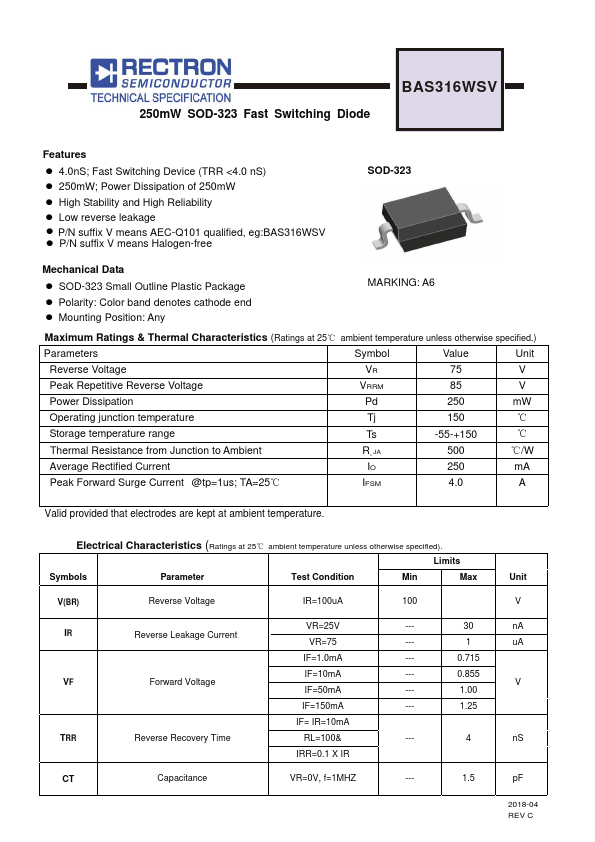

FEATURES

z 4.0nS; Fast Switching Device (TRR <4.0 nS) z 250mW; Power Dissipation of 250mW z High Stability and High Reliability z Low reverse leakage z P/N suffix V means AEC-Q101 qualified, eg:BAS316WSV z P/N suffix V means Halogen-free SOD-323

MECHANICAL DATA

z SOD-323 Small Outline Plastic Package z Polarity: Color band denotes cathode end z Mounting Position: Any MARKING: A6

MAXIMUM RATINGS

& Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Parameters Symbol Value Unit Reverse Voltage VR 75 V Peak Repetitive Reverse Voltage VRRM 85 V Power Dissipation Pd 250 mW Operating junction temperature Tj 150 ℃ Storage temperature range Ts -55-+150 ℃ Thermal Resistance from Junction to Ambient R¸ JA 500 ℃/W Average Rectified Current IO 250 mA Peak Forward Surge Current @tp=1us; TA=25℃ IFSM 4.0 A Valid provided that electrodes are kept at ambient temperature.

ELECTRICAL CHARACTERISTICS

(Ratings at 25℃ ambient temperature unless otherwise specified). Limi...
