BAT42WS - SMALL SIGNAL DIODE

Key Features

  • Low Forward Voltage Drop.
  • Fast Switching Time.
  • Surface Mount Package Ideally Suited for Automatic Insertion.
  • Also Available in Lead Free Version.

📥 Download Datasheet

Datasheet Details

Part number BAT42WS
Manufacturer Rectron
File Size 115.30 KB
Description SMALL SIGNAL DIODE
Datasheet download datasheet BAT42WS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAT42WS Silicon Diode BLUE ROCKET ELECTRONICS
BAT42WS Schottky Diodes LGE
BAT42WS SILICON PLANAR SCHOTTKY BARRIER DIODES CDIL
BAT42WS SURFACE MOUNT SCHOTTKY BARRIER DIODE SEMTECH
BAT42WS SURFACE MOUNT SCHOTTKY BARRIER DIODE WON-TOP

Other Datasheets by Rectron

Part Number Description
BAT42W SMALL SIGNAL DIODE
BAT42 SILICON PLANAR SCHOTTKY DIODES
BAT43W SMALL SIGNAL DIODE
BAT43WS SMALL SIGNAL DIODE
BAT46W SCHOTTKY BARRIER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

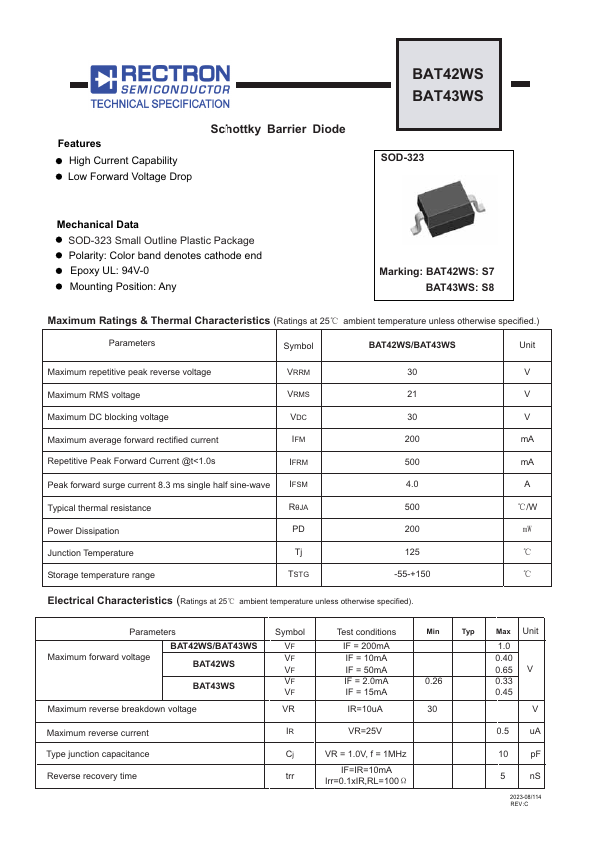

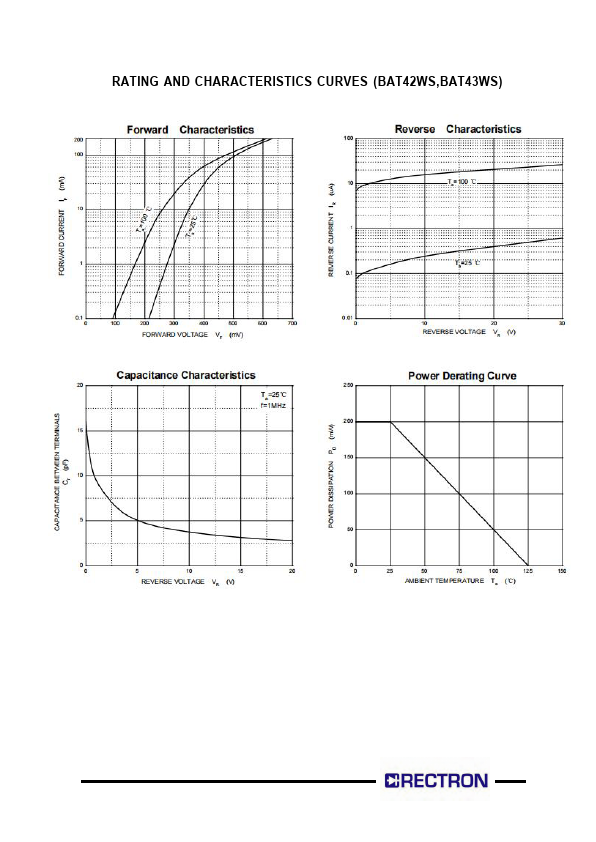

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION SMALL SIGNAL DIODE VOLTAGE RANGE 30 Volts FEATURES * Low Forward Voltage Drop * Fast Switching Time * Surface Mount Package Ideally Suited for Automatic Insertion * Also Available in Lead Free Version MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-O rate flame retardant * Lead: MIL-STD-202E method 208C guaranteed * Mounting position: Any * Weight: 0.004 grams .014(.35) .010(.25) BAT42WS SOD-323 .071(1.80) .063(1.60) .106(2.70) .098(2.50) .055(1.40) .047(1.20) .006(.15) .003(.08) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
