Rectron Semiconductor BAT43WS
Schottky Barrier Diode
| Part No. | BAT43WS |
|---|---|
| Datasheet | BAT43WS Download |
| Manufacturer |  Rectron Semiconductor |
| Description | Schottky Barrier Diode |
| Buy | Stock & Price |

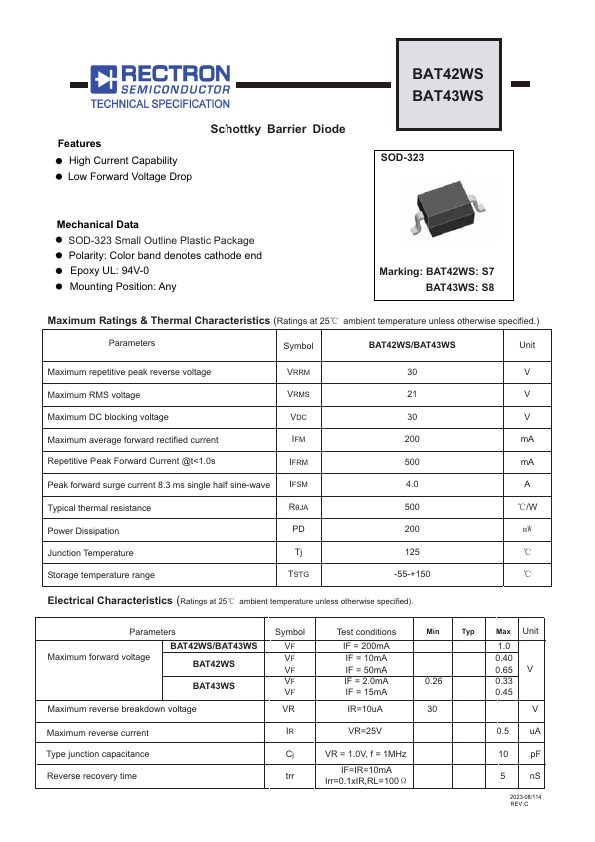

FEATURES
High Current Capability Low Forward Voltage Drop Schottky Barrier Diode BAT42WS BAT43WS SOD-323MECHANICAL DATA
SOD-323 Small Outline Plastic Package Polarity: Color band denotes cathode end Epoxy UL: 94V-0 Mounting Position: Any Marking: BAT42WS: S7 BAT43WS: S8MAXIMUM RATINGS
& Thermal Characteristics (Ratings at 25ć ambient temperature unless otherwise specified.) Parameters Symbol BAT42WS/BAT43WS Unit Maximum repetitive peak reverse voltage VRRM 30 Maximum RMS voltage VRMS 21 Maximum DC blocking voltage VDC 30 Maximum average forward rectified current IFM 200 Repetitive Peak Forward Current @t<1.0s IFRM 500 Peak forward surge current 8.3 ms single half sine-wave Typical thermal resistance Power Dissipation Junction Temperature Storage temperature range IFSM RșJA PD Tj TSTG 4.0 500 200 125 -55-+150ELECTRICAL CHARACTERISTICS
(Ratings at 25ć ambient temperature unless otherwise specified). V V V mA mA A ć/W P: ć ć Parameters Maximum forward voltage BAT42WS/BAT43WS BAT42WS BA...
