BAT43WS - SMALL SIGNAL DIODE

General Description

only.

"Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time.

Rectron Inc does not assume any liability arising out of the application or use of any product or circuit.

Key Features

  • Low Forward Voltage Drop.
  • Fast Switching Time.
  • Surface Mount Package Ideally Suited for Automatic Insertion.
  • Also Available in Lead Free Version.

📥 Download Datasheet

Datasheet Details

Part number BAT43WS
Manufacturer Rectron
File Size 114.88 KB
Description SMALL SIGNAL DIODE
Datasheet download datasheet BAT43WS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAT43WS SURFACE MOUNT SCHOTTKY BARRIER DIODE Kexin
BAT43WS SURFACE MOUNT SCHOTTKY BARRIER DIODE WON-TOP
BAT43WS SCHOTTKY BARRIER DIODE JCET
BAT43WS SILICON PLANAR SCHOTTKY BARRIER DIODES CDIL
BAT43WS SURFACE MOUNT SCHOTTKY BARRIER DIODE SEMTECH

Other Datasheets by Rectron

Part Number Description
BAT43W SMALL SIGNAL DIODE
BAT42 SILICON PLANAR SCHOTTKY DIODES
BAT42W SMALL SIGNAL DIODE
BAT42WS SMALL SIGNAL DIODE
BAT46W SCHOTTKY BARRIER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

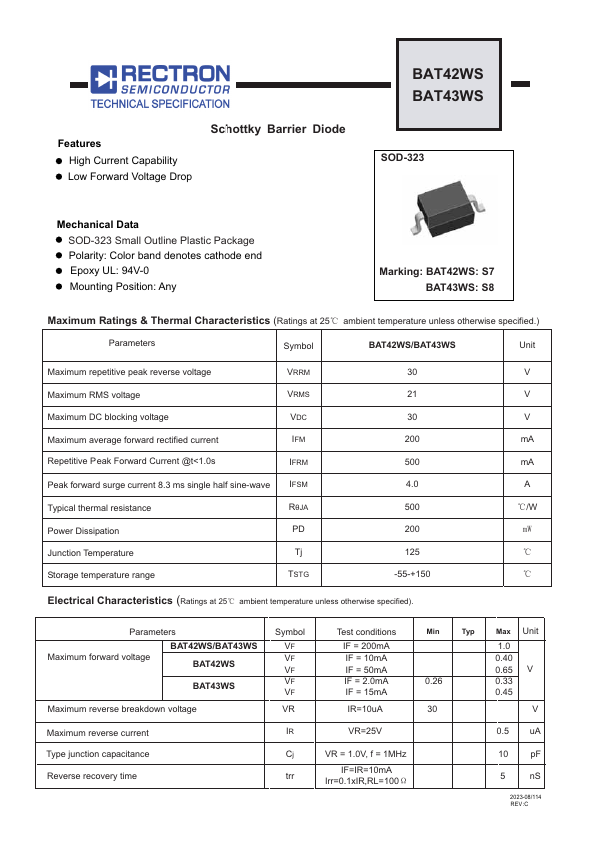

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION SMALL SIGNAL DIODE VOLTAGE RANGE 30 Volts FEATURES * Low Forward Voltage Drop * Fast Switching Time * Surface Mount Package Ideally Suited for Automatic Insertion * Also Available in Lead Free Version MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-O rate flame retardant * Lead: MIL-STD-202E method 208C guaranteed * Mounting position: Any * Weight: 0.004 grams .014(.35) .010(.25) BAT43WS SOD-323 .071(1.80) .063(1.60) .106(2.70) .098(2.50) .055(1.40) .047(1.20) .006(.15) .003(.08) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
