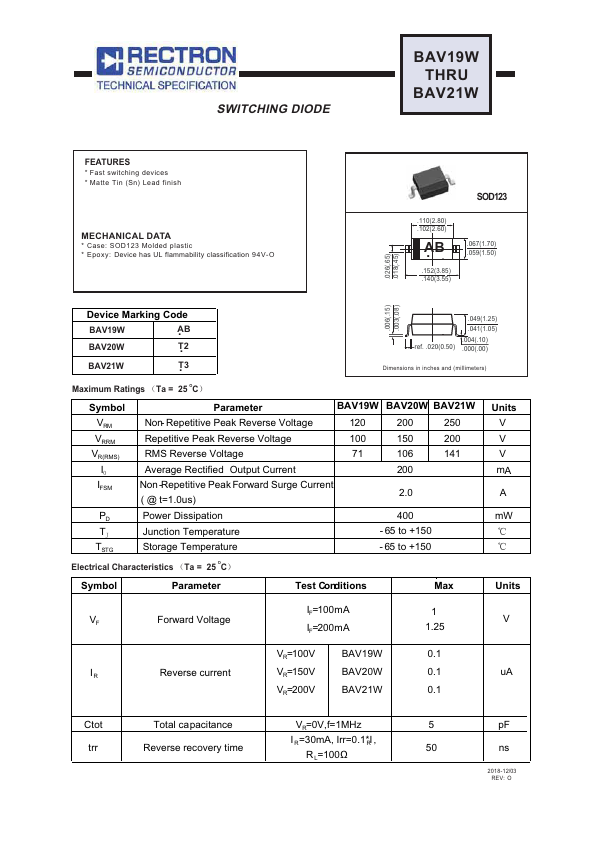

BAV20W
BAV20W is SWITCHING DIODE manufactured by Rectron.
- Part of the BAV19W comparator family.
- Part of the BAV19W comparator family.
FEATURES
- Fast switching devices
- Matte Tin (Sn) Lead finish
MECHANICAL DATA
- Case: SOD123 Molded plastic
- Epoxy: Device has UL flammability classification 94V-O
.026(.65) .018(.45)
SOD123
.110(2.80) .102(2.60)
A. B
.152(3.85) .140(3.55)
.067(1.70) .059(1.50)
.006(.15) .003(.08)
Device Marking Code
BAV19W
A. B
T. 2
BAV21W
T. 3
.049(1.25) .041(1.05) .004(.10) ref. .020(0.50) .000(.00)
Dimensions in inches and (millimeters)
Maximum Ratings ˄Ta = 25 OC˅
Symbol
Parameter
BAV19W BAV20W BAV21W
VRM VRRM VR(RMS)
I2 IFSM
Non- Repetitive Peak Reverse Voltage Repetitive Peak Reverse Voltage RMS Reverse Voltage Average Rectified Output Current Non -Repetitive Peak Forward Surge Current ( @ t=1.0us)
120 100 71
200 150 106 200
2.0
250 200 141
Power Dissipation
T-
Junction Temperature
TSTG
Storage Temperature
Electrical Characteristics ˄Ta...
