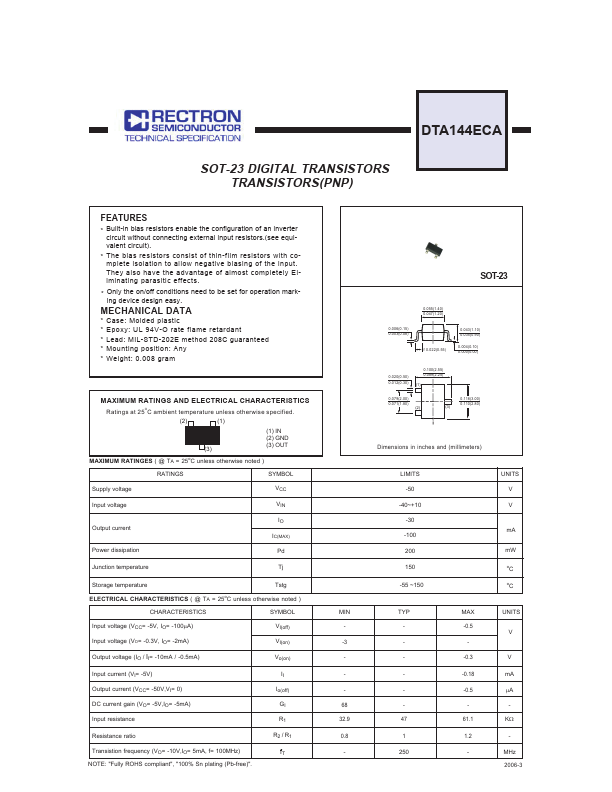

DTA144ECA Datasheet Sot-23 PNP Digital Transistors

Manufacturer: Rectron

Overview: DTA144ECA SOT-23 DIGITAL TRANSISTORS TRANSISTORS(PNP).

Datasheet Details

Part number DTA144ECA
Manufacturer Rectron
File Size 353.39 KB
Description SOT-23 PNP DIGITAL TRANSISTORS
Datasheet DTA144ECA-Rectron.pdf

Key Features

  • Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors. (see equivalent circuit).
  • The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely Eliminating parasitic effects.
  • Only the on/off conditions need to be set for operation marking device design easy.
