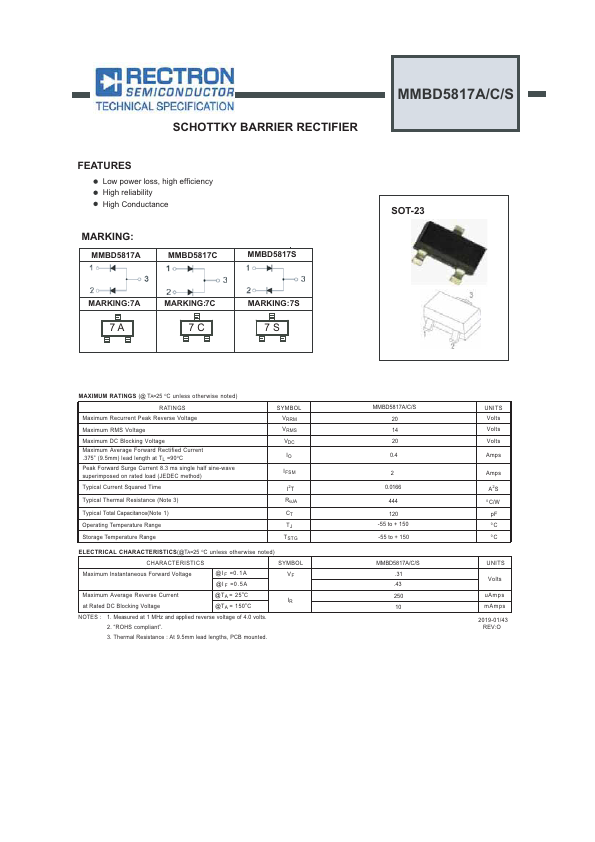

Rectron Semiconductor MMBD5817S
SCHOTTKY BARRIER RECTIFIER
| Part No. | MMBD5817S |
|---|---|
| Datasheet | MMBD5817S Download |
| Manufacturer |  Rectron Semiconductor |
| Description | SCHOTTKY BARRIER RECTIFIER |
| Buy | Stock & Price |
FEATURES
Low power loss, high efficiency High reliability High Conductance MARKING: MMBD5817A MMBD5817C MMBD5817S MMBD5817A/C/S SOT-23 MARKING:7A 7A MARKING:7C 7C MARKING:7S 7SMAXIMUM RATINGS
(@ TA=25 OC unless otherwise noted) RATINGS Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current .375” (9.5mm) lead length at TL =90OC Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Typical Current Squared Time Typical Thermal Resistance (Note 3) Typical Total Capacitance(Note 1) Operating Temperature Range Storage Temperature Range SYMBOL VRRM VRMS VDC IO IFSM I2T RQJA CT TJ TSTGELECTRICAL CHARACTERISTICS
(@TA=25 OC unless otherwise noted) CHARACTERISTICS Maximum Instantaneous Forward Voltage @I F =0.1A Maximum Average Reverse Current @I F =0.5A @TA = 25oC at Rated DC Blocking Voltage @TA = 150oC NOTES : 1. Measured at 1 MHz and applied reverse voltage of 4.0 volts. 2. “ROHS compliant”.
