Datasheet Details
| Part number | MMBTA92 |
|---|---|
| Manufacturer | Rectron |
| File Size | 128.13 KB |
| Description | Silicon PNP SMD triode |
| Datasheet | MMBTA92-Rectron.pdf |
|
|
Overview: MMBTA92 Marking code˖MMBTA92 encapsulation mode˖SOT-23 Silicon PNP SMD triode 1˖base 2˖emitter 3˖collector High breakdown voltage Low collector-emitter saturation voltage Complementary to MMBTA42 (NPN) grade marking MMBTA92 2D Ouline example Maximum ratings(Ta=25ć unless otherwise noted) Parameter Symbol Value Collector-Base Breakdown Voltage VCBO -300 Collector-Emitter Breakdown Voltage VCEO -300 Emitter-Base Breakdown Voltage VEBO -5 Collector Current IC -200 Collector Power Dissipation PC 350 Junction Temperatuye TJ 150 Storage Temperatuye Tstg ̚ Electrical Characteristics (Ta=25ć unless otherwise noted) Parameter Symbol Test Condition Collector-Base Breakdown Voltage VCBO IC=-100uA IE=0 Collector Emitter Voltage VCEO IC=-1mA IB=0 Emitter-Base Breakdown Voltage VEBO IE=-100uA IC=0 Collector Cutoff Current ICBO VCB=-200V IE=0 Emitter Cutoff Current IEBO VCE=-5V IB=0 hFE(1) VCE=-10V IC=-1mA DC Current Gain hFE(2) VCE=-10V IC=-10mA hFE(3) VCE=-10V IC=-30mA Collector-Emitter Saturation Voltage VCE(sat) IC=-20mA IB=-2mA Collector-Base Saturation Voltage VBE(sat) IC=-20mA IB=-2mA transition frequency VCE=-20V IC=-10mA fT f=30MHz Unit V V V mA mW ć ć Min -300 -300 -5 60 60 60 50 Max -250 -100 300 -0.5 -0.9 Unit V V V nA nA V V MHz 2017-01/17 REV:O DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes. Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies.
| Part number | MMBTA92 |
|---|---|
| Manufacturer | Rectron |
| File Size | 128.13 KB |
| Description | Silicon PNP SMD triode |
| Datasheet | MMBTA92-Rectron.pdf |
|
|
|
only.

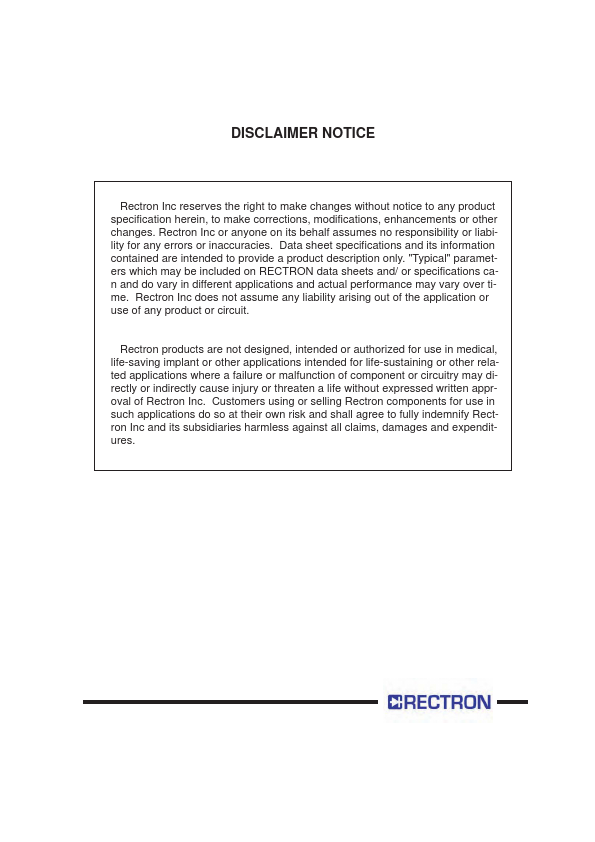

"Typical" parameters which may be included on RECTRON data sheets and/ or specifications can and do vary in different applications and actual performance may vary over time.
Rectron Inc does not assume any liability arising out of the application or use of any product
