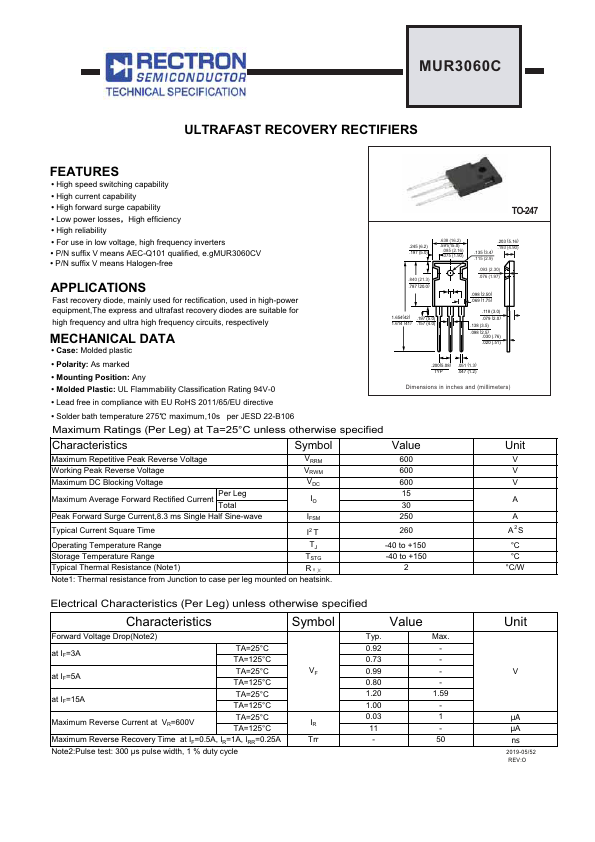

MUR3060C
FEATURES
- High speed switching capability
- High current capability
- High forward surge capability
- Low power losses High efficiency
- High reliability
- For use in low voltage, high frequency inverters
- P/N suffix V means AEC-Q101 qualified, e.g MUR3060CV
- P/N suffix V means Halogen-free
APPLICATIONS
Fast recovery diode, mainly used for rectification, used in high-power equipment,The express and ultrafast recovery diodes are suitable for high frequency and ultra high frequency circuits, respectively
MECHANICAL DATA
- Case: Molded plastic
TO-247
.245 (6.2) .197 (5.0)
.638 (16.2)
.591(15.0) .085 (2.16)
.075 (1.90)
.135 (3.4) .115 (2.9)
.203 (5.16) .193 (4.90)
.840 (21.3) .787 (20.0)
.093 (2.30) .076 (1.97)
.098 (2.50) .069 (1.75)
1.654(42) .197 (5.0) 1.614 (41) .157 (4.0)
.118 (3.0) .079 (2.0)
.138 (3.5) .098 (2.5)
.030 (.76) .020 (.51)
- Polarity: As marked
- Mounting Position: Any
- Molded Plastic: UL Flammability Classification Rating 94V-0
.200(5.08) .051...
