Rectron Semiconductor RB751S-40V
SCHOTTKY BARRIER DIODE
| Part No. | RB751S-40V |
|---|---|
| Datasheet | RB751S-40V Download |
| Manufacturer |  Rectron Semiconductor |
| Description | SCHOTTKY BARRIER DIODE |
| Buy | Stock & Price |

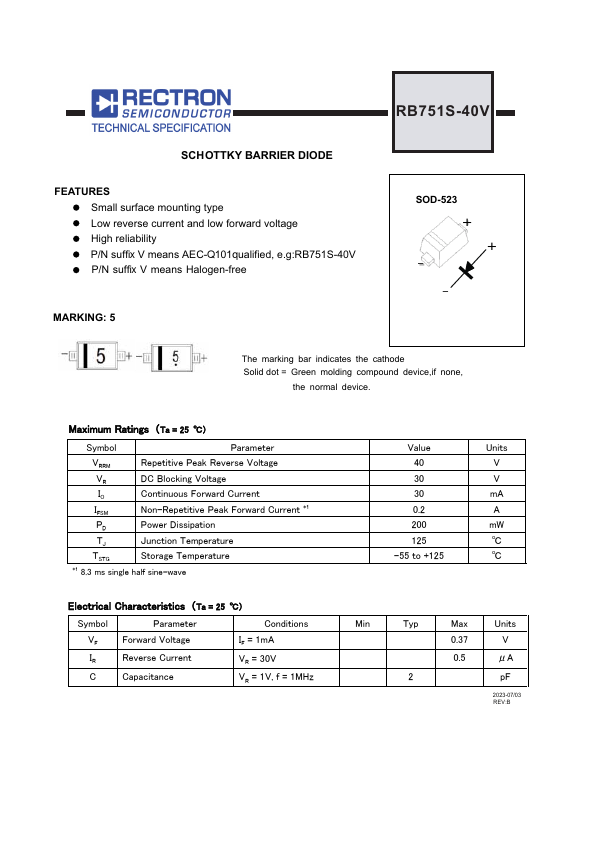

FEATURES
Small surface mounting type Low reverse current and low forward voltage High reliability P/N suffix V means AEC-Q101qualified, e.g:RB751S-40V P/N suffix V means Halogen-free MARKING: 5 SOD-523 + + - - The marking bar indicates the cathode Solid dot = Green molding compound device,if none, the normal device.MAXIMUM RATINGS
（Ta = 25 ℃） Symbol Parameter VRRM Repetitive Peak Reverse Voltage VR DC Blocking Voltage IO Continuous Forward Current IFSM Non-Repetitive Peak Forward Current *1 PD Power Dissipation TJ Junction Temperature TSTG Storage Temperature *1 8.3 ms single half sine-waveELECTRICAL CHARACTERISTICS

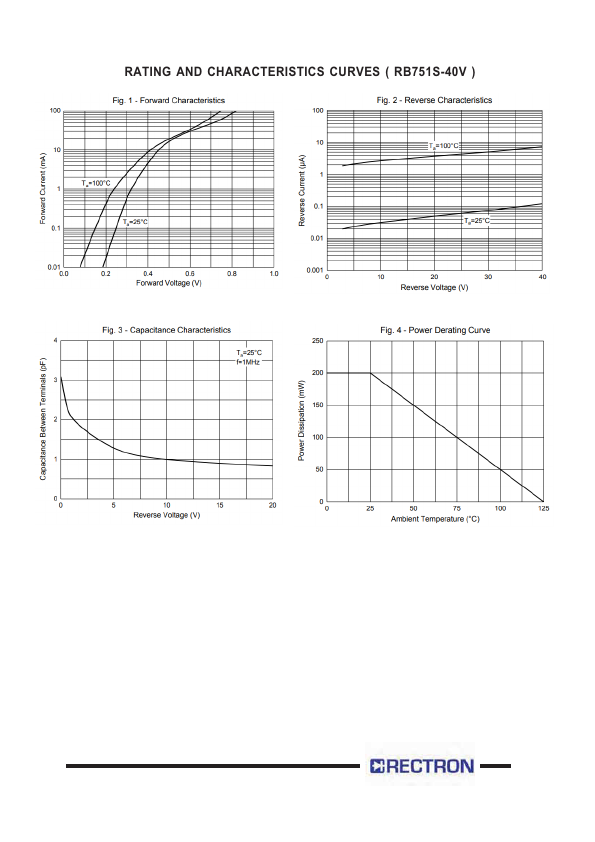

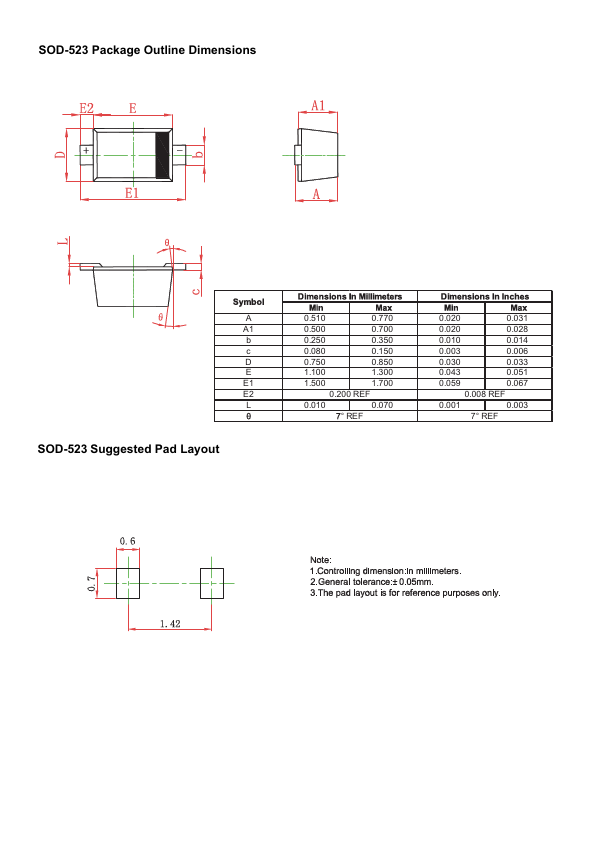

（Ta = 25 ℃） Symbol VF IR C Parameter Forward Voltage Reverse Current Capacitance Conditions IF = 1mA VR = 30V VR = 1V, f = 1MHz Value 40 30 30 0.2 200 125 -55 to +125 Units V V mA A mW ℃ ℃ Min Typ Max Units 0.37 V 0.5 μA 2 pF 2023-07/03 REV:B RATING AND CHARACTERISTICS CURVES ( RB751S-40V ) " "" "" " " SOD-523 Package Outline Dimensions A A1 b c D E E1 E2 L SOD-523 Sugges...
