SD103AWS Datasheet | Rectron

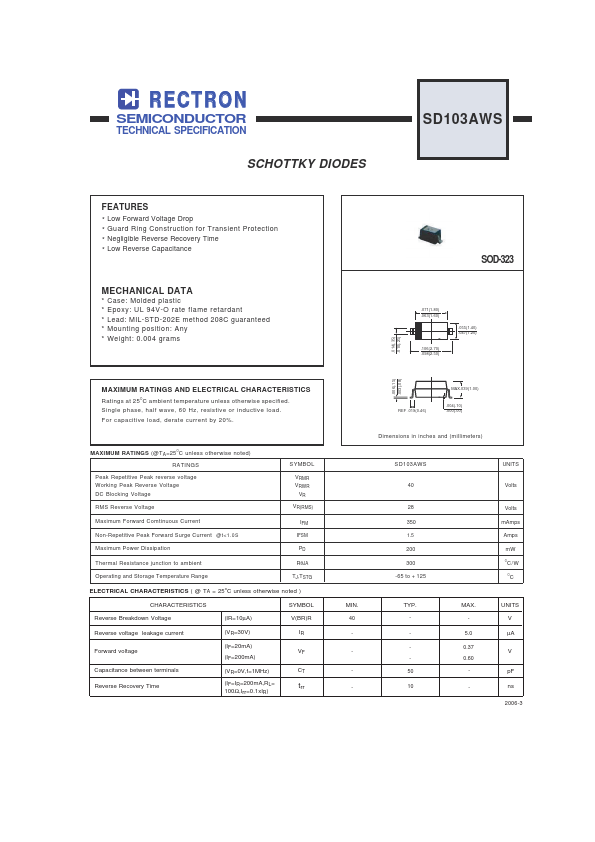

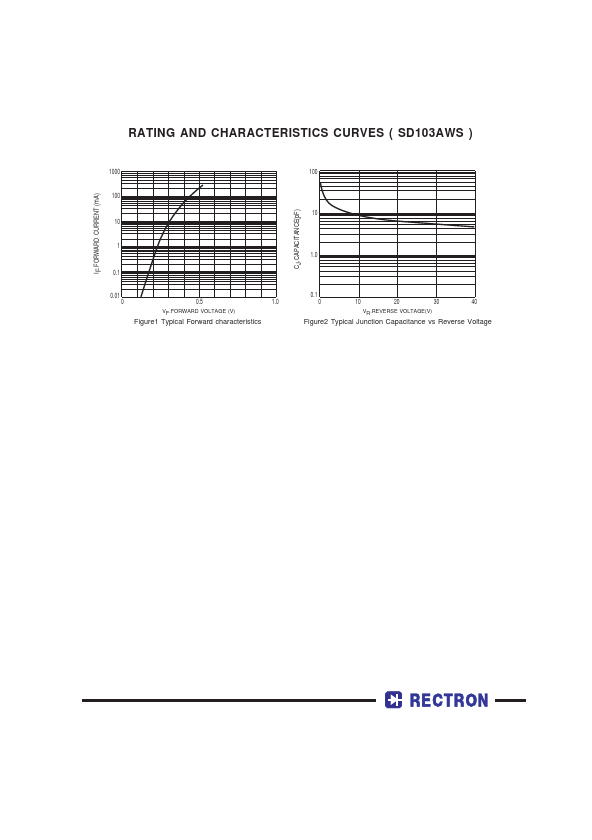

FEATURES - Low Forward Voltage Drop - Guard Ring Construction for Transient Protection - Negligible Reverse Recovery Time - Low Reverse Capacitance MECHANICAL DATA - Case: Molded plastic - Epoxy: UL 94V-O rate flame retardant - Lead: MIL-STD-202E method 208C guaranteed - Mounting position: Any - Weight: 0.004 grams .014(.35) .010(.25) SOD-323 .071(1.80) .063(1.60) .106(2.70) .098(2.50) .055(1.40) .047(1.20) .006(.15) .003(.08) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. MAXIMUM RATINGS (@TA=25OC unless otherwise noted) RATINGS Peak Repetitive Peak reverse voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Maximum Forward tinuous Current Non-Repetitive Peak Forward Surge Current @t<1.0S Maximum Power Dissipation SYMBOL VRMR VRWR VR VR(RMS) IFM IFSM Thermal Resistance junction to ambient RθJA Operating and Storage Temperature Range TJ,TSTG ELECTRICAL CHARACTERISTICS ( @ TA = 25o C unless otherwise noted ) CHARACTERISTICS Reverse Breakdown Voltage (IR=10µA) SYMBOL V(BR)R Reverse voltage leakage current Forward voltage Capacitance between terminals Reverse Recovery Time (VR=30V) (IF=20m A) VF (IF=200m A) (VR=0V,f=1MHz)...
