HD404828R - (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit

This page provides the datasheet information for the HD404828R, a member of the HD4048212R (HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit family.

Product Overview

Renesas Technology

📥 Download Datasheet

Datasheet Details

Part number	HD404828R
Manufacturer	Renesas Technology
File Size	785.60 KB
Description	(HD404829R Series) AS Microcomputer Incorporating a LCD controller/Driver Circuit
Datasheet	HD404828R Datasheet
Additional preview pages of the HD404828R datasheet.

HD404828R Product details

Description

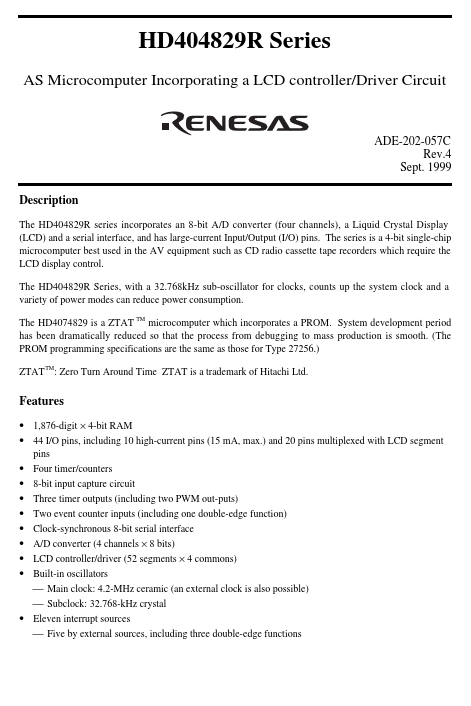

The HD404829R series incorporates an 8-bit A/D converter (four channels), a Liquid Crystal Display (LCD) and a serial interface, and has large-current Input/Output (I/O) pins.

Features

1,876-digit × 4-bit RAM.
44 I/O pins, including 10 high-current pins (15 mA, max. ) and 20 pins multiplexed with LCD segment pins.
Four timer/counters.
8-bit input capture circuit.
Three timer outputs (including two PWM out-puts).
Two event counter inputs (including one double-edge function).
Clock-synchronous 8-bit serial interface.
A/D converter (4 channels × 8 bits).
LCD controller/driver (52 segments × 4 commons.
