HVC145 - Silicon Epitaxial Planar Pin Diode

Product Overview

Renesas Technology

Part number	HVC145
Manufacturer	Renesas Technology
File Size	104.15 KB
Description	Silicon Epitaxial Planar Pin Diode
Datasheet	HVC145 Datasheet
Additional preview pages of the HVC145 datasheet.

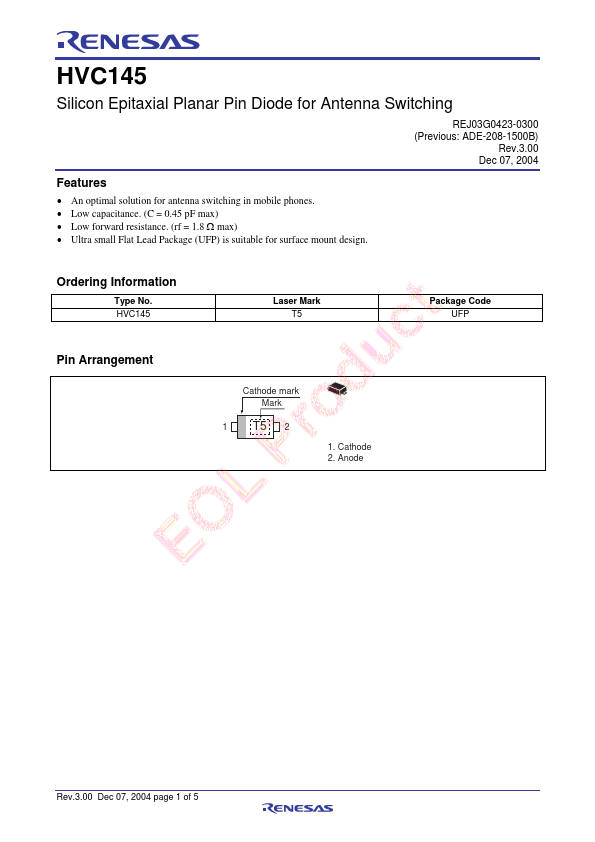

An optimal solution for antenna switching in mobile phones. Low capacitance. (C = 0.45 pF max) Low forward resistance. (rf = 1.8 Ω max) Ultra small Flat Lead Package (UFP) is suitable for surface mount design. Ordering Information Type No. HVC145 Laser Mark T5 Package Code UFP Pin Arrangement Cathode mark Mark 1 T5 2 1. Cathode 2. Anode Rev.3.00 Dec 07, 2004 page 1 of 5 HVC145 Absolute Maximum Ratings (Ta = 25°C) Item Reverse voltage Forward current.
