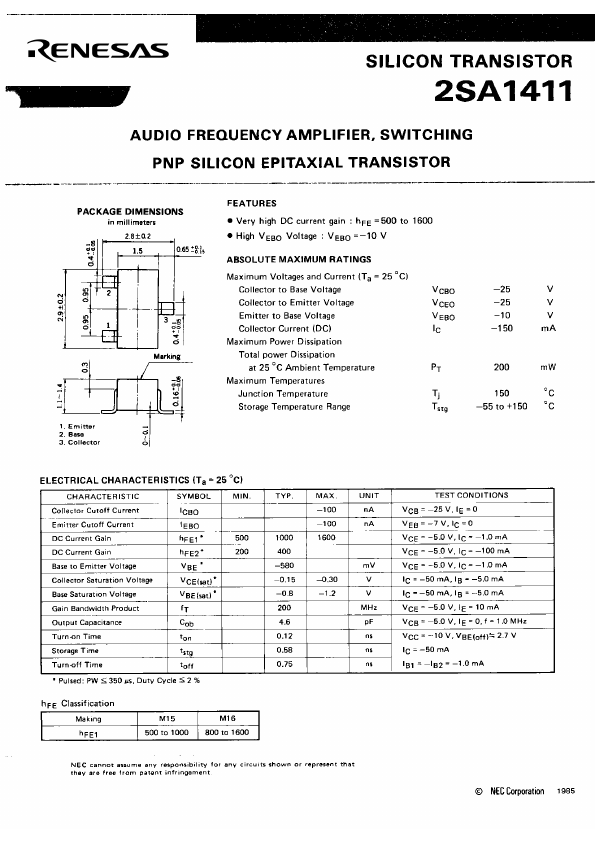

2SA1411 - PNP Silicon Transistor

📥 Download Datasheet

Datasheet Details

Part number 2SA1411
Manufacturer Renesas
File Size 147.02 KB
Description PNP Silicon Transistor
Datasheet download datasheet 2SA1411 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1411 Transistor Kexin
2SA1411 Transistor TY Semiconductor
2SA1412 PNP SILICON TRIPLE DIFFUSED TRANSISTOR NEC
2SA1412-Z PNP Transistor NEC
2SA1412-Z NPN Transistor INCHANGE

Other Datasheets by Renesas

Part Number Description
2SA1412-Z SILICON POWER TRANSISTOR
2SA1413-Z SILICON POWER TRANSISTOR
2SA1468 Silicon PNP Transistor
2SA1485 Silicon PNP Transistor
2SA1052 Silicon PNP Epitaxial Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
