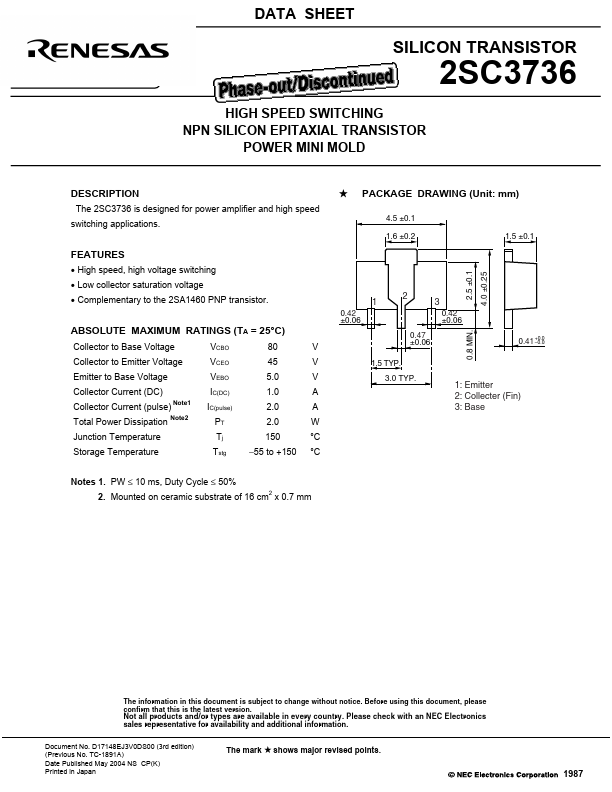

2SC3736
DESCRIPTION
The 2SC3736 is designed for power amplifier and high speed switching applications.
FEATURES
- High speed, high voltage switching
- Low collector saturation voltage
- plementary to the 2SA1460 PNP transistor.
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Collector to Base Voltage
VCBO
Collector to Emitter Voltage
VCEO
Emitter to Base Voltage
VEBO
Collector Current (DC) Collector Current (pulse) Note1 Total Power Dissipation Note2
IC(DC) IC(pulse)
Junction Temperature Storage Temperature
Tj
°C
Tstg
- 55 to +150 °C
PACKAGE DRAWING (Unit: mm)
4.5 ±0.1 1.6 ±0.2
1.5 ±0.1
2.5 ±0.1 4.0 ±0.25
1 0.42 ±0.06
0.42 ±0.06
0.47 ±0.06
+0.03
- 0.05
0.8 MIN.
1.5 TYP. 3.0 TYP.
1: Emitter 2: Collecter (Fin) 3:...
