2SD1033 - NPN SILICON EPITAXIAL TRANSISTOR

General Description

The 2SD1033 is designed for Color TV vertical deflection output, especially in Hybrid Integrated Circuits.

Key Features

  • High Voltage VCEO = 150 V.
  • Complement to 2SB768.

📥 Download Datasheet

Datasheet Details

Part number 2SD1033
Manufacturer Renesas
File Size 527.12 KB
Description NPN SILICON EPITAXIAL TRANSISTOR
Datasheet download datasheet 2SD1033 Datasheet

Full PDF Text Transcription for 2SD1033 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for 2SD1033. For precise diagrams, and layout, please refer to the original PDF.

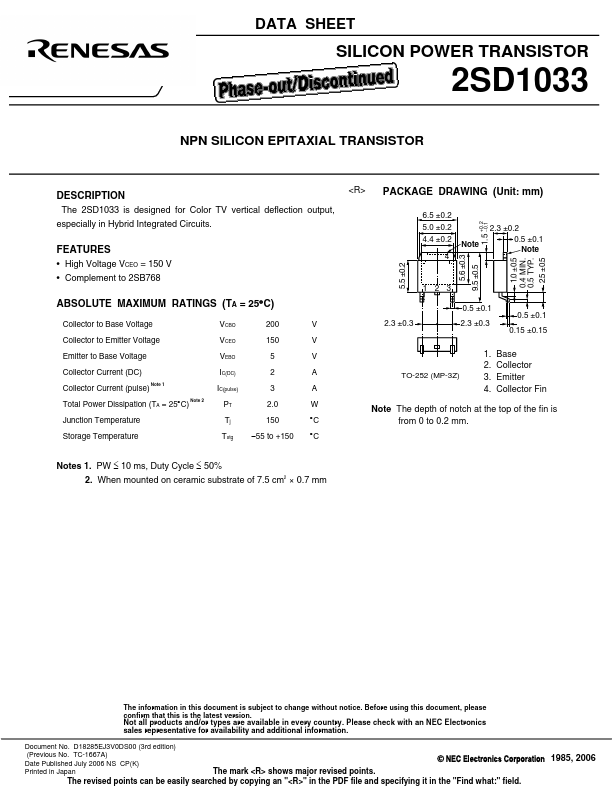

DATA SHEET SILICON POWER TRANSISTOR 2SD1033 NPN SILICON EPITAXIAL TRANSISTOR DESCRIPTION The 2SD1033 is designed for Color TV vertical deflection output, especially in Hy...

View more extracted text

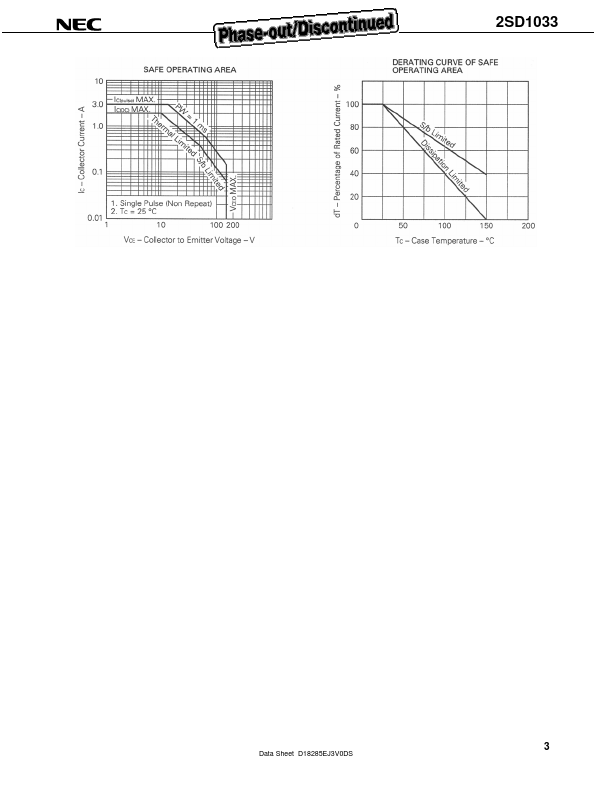

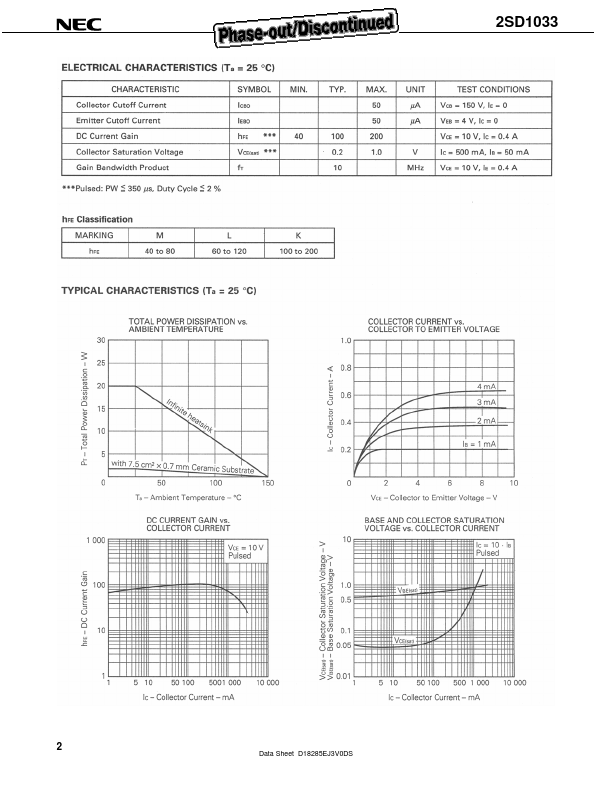

is designed for Color TV vertical deflection output, especially in Hybrid Integrated Circuits. FEATURES • High Voltage VCEO = 150 V • Complement to 2SB768 ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Collector to Base Voltage VCBO 200 V Collector to Emitter Voltage VCEO 150 V Emitter to Base Voltage VEBO 5 V Collector Current (DC) IC(DC) 2 A Collector Current (pulse) Note 1 IC(pulse) 3 A Total Power Dissipation (TA = 25°C) Note 2 PT 2.0 W Junction Temperature Tj 150 °C Storage Temperature Tstg −55 to +150 °C <R> PACKAGE DRAWING (Unit: mm) 6.5 ±0.2 5.0 ±0.2 4.4 ±0.2 4 Note 1.5 +0.2 −0.1 2.3 ±0.2 0.5 ±0.1 Note 1.0 ±0.5 0.4 MIN. 0.5
