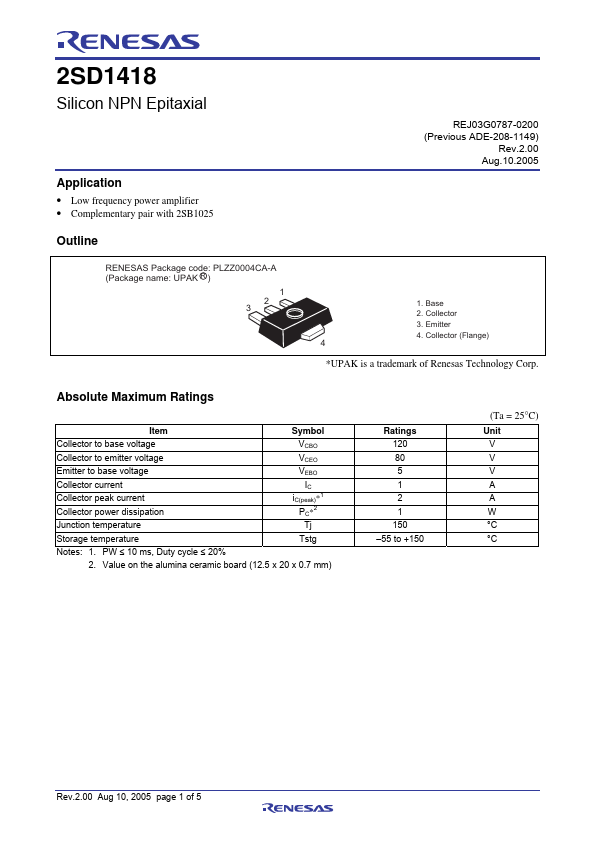

2SD1418 Silicon NPN Epitaxial Application • Low frequency power amplifier • Complementary pair with 2SB1025 Outline RENESAS Package code: PLZZ0004CA-A (Package name: UPAK...
View more extracted text
2SB1025 Outline RENESAS Package code: PLZZ0004CA-A (Package name: UPAK R ) 1 2 3 REJ03G0787-0200 (Previous ADE-208-1149) Rev.2.00 Aug.10.2005 1. Base 2. Collector 3. Emitter 4. Collector (Flange) 4 *UPAK is a trademark of Renesas Technology Corp. Absolute Maximum Ratings Item Symbol Collector to base voltage VCBO Collector to emitter voltage VCEO Emitter to base voltage VEBO Collector current Collector peak current Collector power dissipation IC iC(peak)*1 PC*2 Junction temperature Tj Storage temperature Tstg Notes: 1. PW ≤ 10 ms, Duty cycle ≤ 20% 2. Value on the alumina ceramic board (12.5 x 20 x 0.
