HSB88WA Datasheet Silicon Schottky Barrier Diode

Manufacturer: Renesas

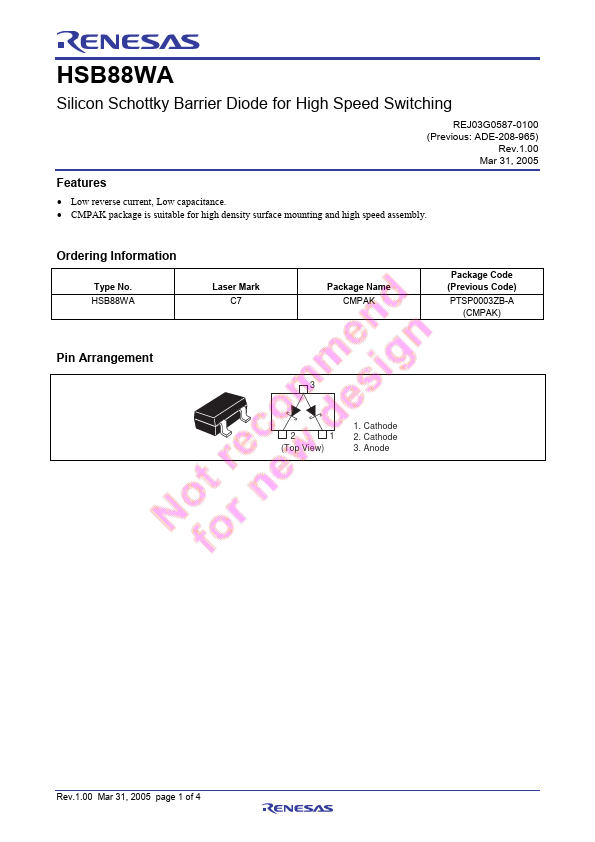

Overview: HSB88WA Silicon Schottky Barrier Diode for High Speed Switching REJ03G0587-0100 (Previous: ADE-208-965) Rev.1.

Datasheet Details

Part number HSB88WA
Manufacturer Renesas
File Size 251.95 KB
Description Silicon Schottky Barrier Diode
Datasheet HSB88WA_Renesas.pdf

Key Features

  • Low reverse current, Low capacitance.

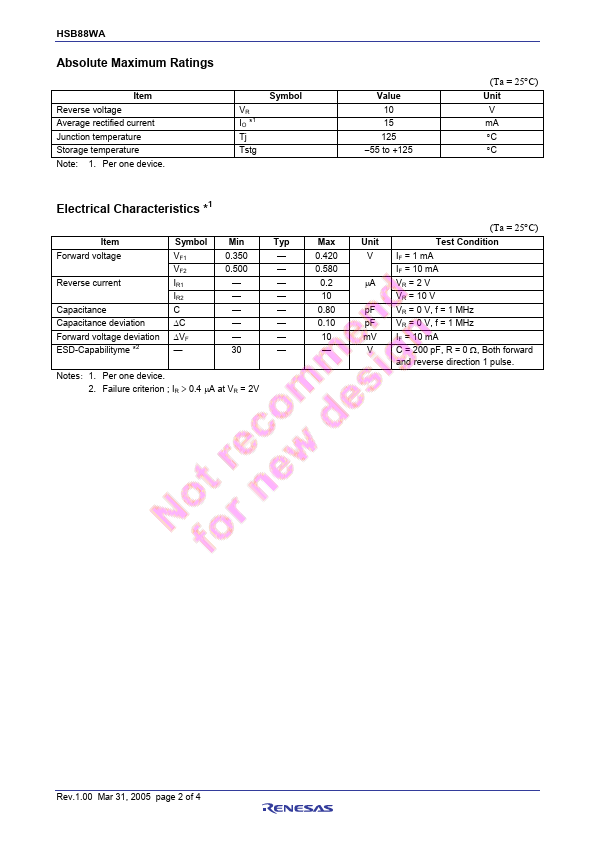

  • CMPAK package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HSB88WA Laser Mark C7 Package Name CMPAK Package Code (Previous Code) PTSP0003ZB-A (CMPAK) Pin Arrangement 3 2 1 (Top View) 1. Cathode 2. Cathode 3. Anode Rev.1.00 Mar 31, 2005 page 1 of 4 HSB88WA Absolute Maximum Ratings Item Reverse voltage Average rectified current Junction temperature Storage temperature Note.
