HSM276S
HSM276S is Silicon Schottky Barrier Diode manufactured by Renesas.
Silicon Schottky Barrier Diode for Balanced Mixer
REJ03G0610-0700 (Previous: ADE-208-039F)
Rev.7.00 Apr 26, 2005

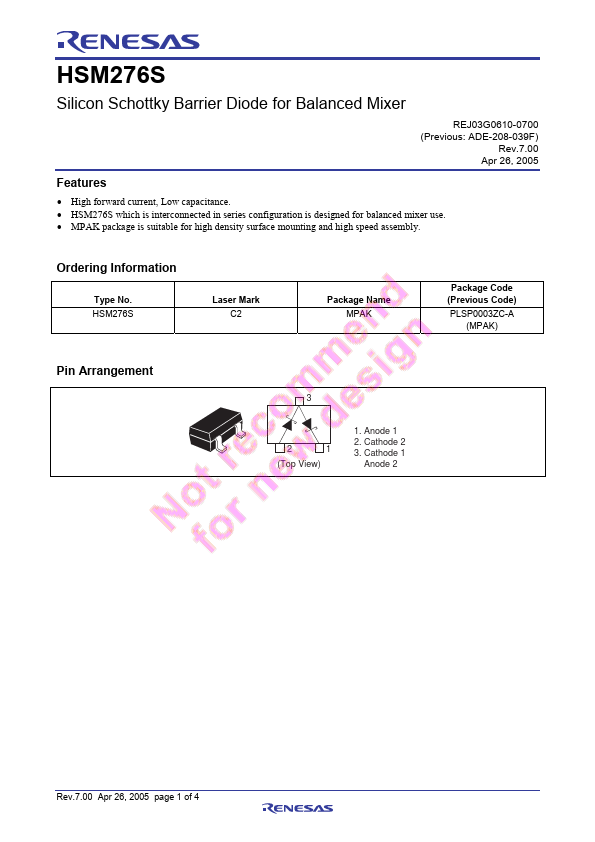

Features
- High forward current, Low capacitance.
- HSM276S which is interconnected in series configuration is designed for balanced mixer use.
- MPAK package is suitable for high density surface mounting and high speed assembly.
Ordering Information
Type No. HSM276S
Laser Mark C2
Package Name MPAK
Package Code (Previous Code)
PLSP0003ZC-A (MPAK)
Pin Arrangement
(Top View)
1. Anode 1 2. Cathode 2 3. Cathode 1
Anode 2

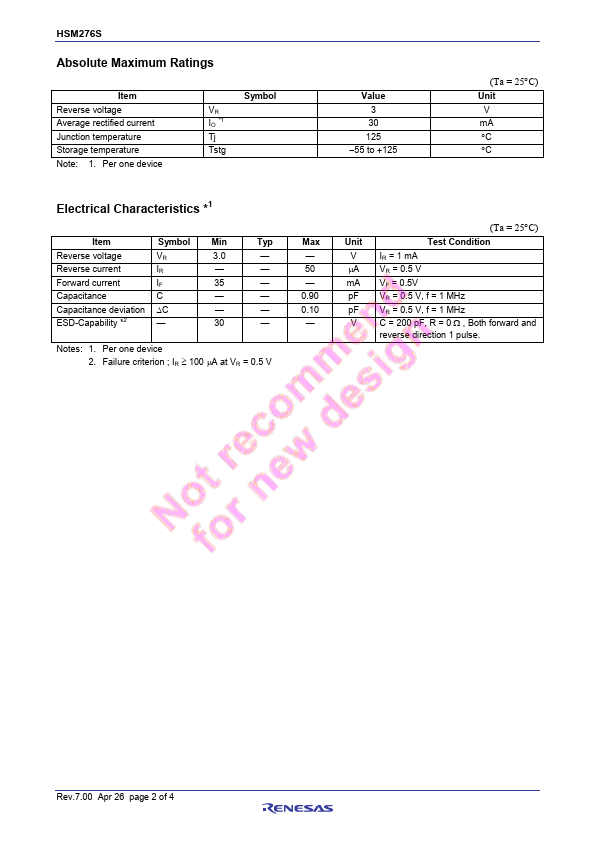

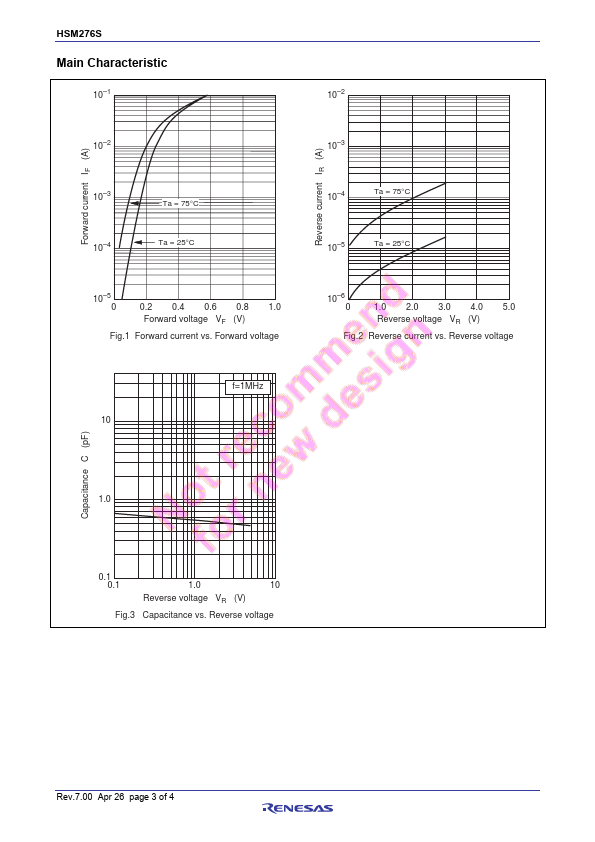

Rev.7.00 Apr 26, 2005 page 1 of...
