HSM276SR Datasheet Silicon Schottky Barrier Diode

Manufacturer: Renesas

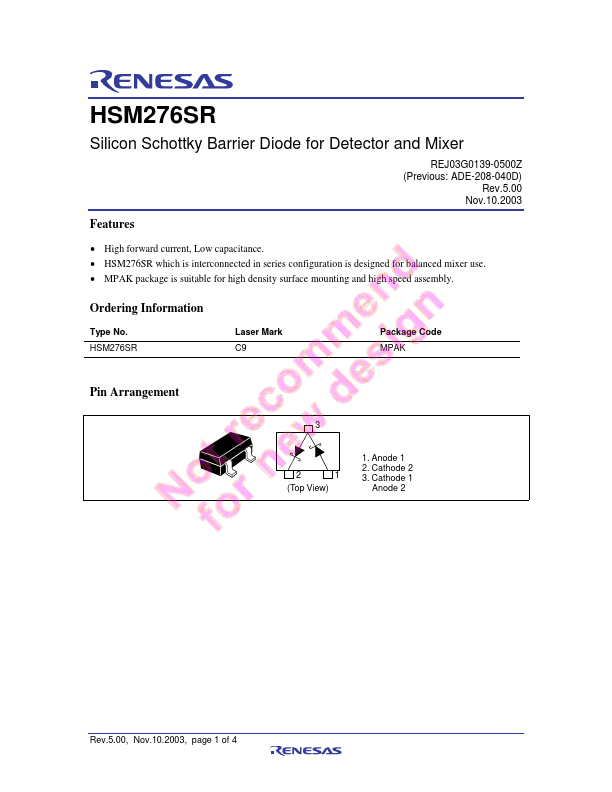

Overview: HSM276SR Silicon Schottky Barrier Diode for Detector and Mixer REJ03G0139-0500Z (Previous: ADE-208-040D) Rev.5.00 Nov.10.

Datasheet Details

Part number	HSM276SR
Manufacturer	Renesas
File Size	171.47 KB
Description	Silicon Schottky Barrier Diode
Datasheet	HSM276SR-Renesas.pdf

High forward current, Low capacitance.
HSM276SR which is interconnected in series configuration is designed for balanced mixer use.

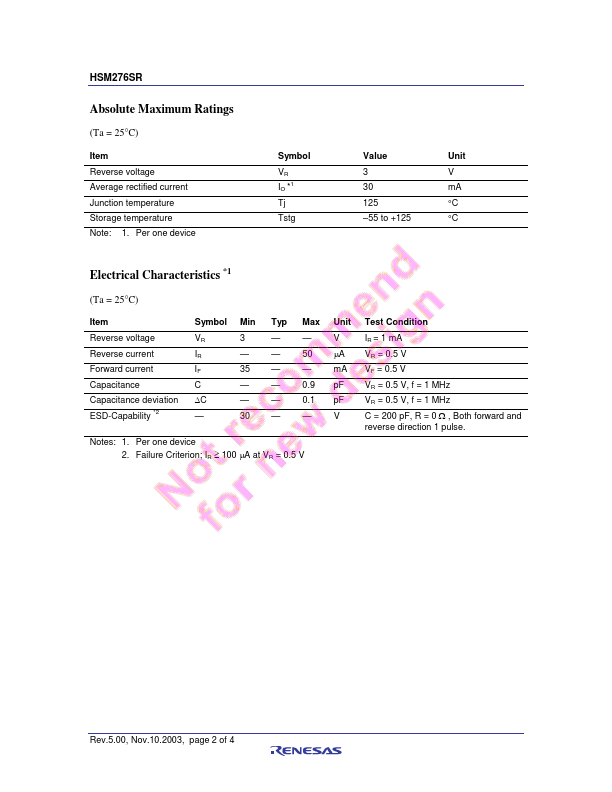

MPAK package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HSM276SR Laser Mark C9 Package Code MPAK Pin Arrangement 3 2 1 (Top View) 1. Anode 1 2. Cathode 2 3. Cathode 1 Anode 2 Rev.5.00, Nov.10.2003, page 1 of 4 HSM276SR Absolute Maximum Ratings (Ta = 25°C) Item Reverse.
