Renesas Electronics HSM88ASR
Silicon Schottky Barrier Diode
HSM88ASR Specifications
- Max Output Current : 15mA
- Terminals : 3
- Reverse Standoff Voltage : 10V
- Max Operating Temp : 100°C
Source:
Octopart
| Part No. | HSM88ASR |
|---|---|
| Datasheet | HSM88ASR Download |
| Manufacturer |  Renesas Electronics |
| Description | Silicon Schottky Barrier Diode |
| Buy | Stock & Price |

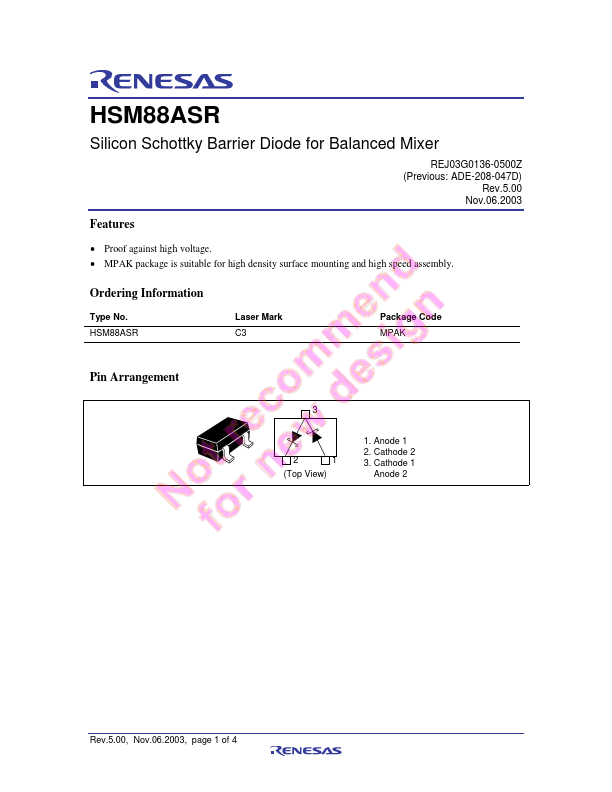

FEATURES
● Proof against high voltage.● MPAK package is suitable for high density surface mounting and high speed assembly. Ordering Information Type No. HSM88ASR Laser Mark C3 Package Code MPAK Pin Arrangement 3 2 1 (Top View) 1. Anode 1 2. Cathode 2 3. Cathode 1 Anode 2 Rev.5.00, Nov.06.2003, page 1 of 4 HSM88ASR

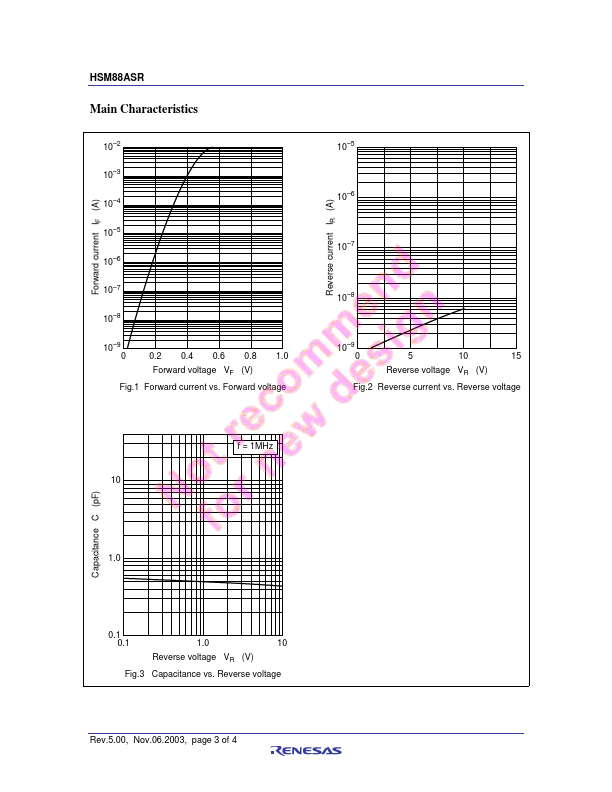

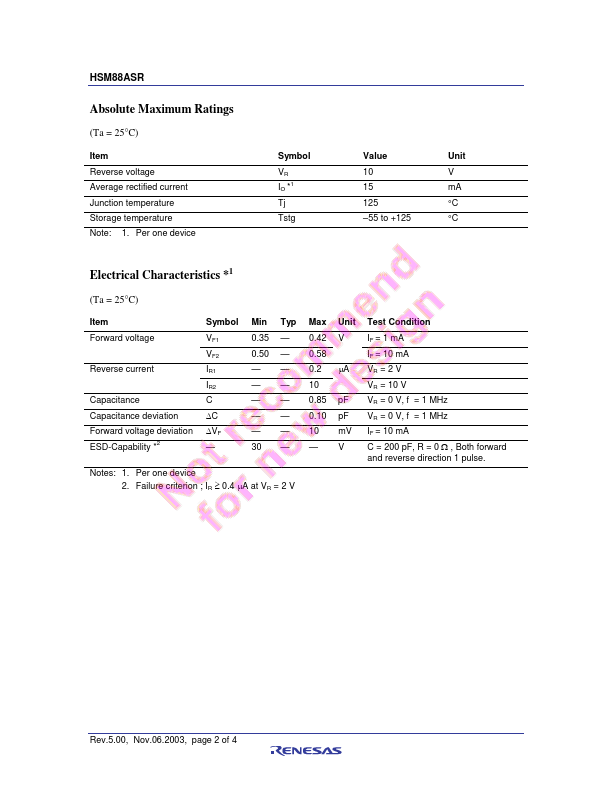

ABSOLUTE MAXIMUM RATINGS
(Ta = 25°C) Item Reverse voltage Average rectified current Junction temperature Storage temperature Note: 1. Per one device Symbol VR IO *1 Tj Tstg Value Unit 10 V 15 mA 125 °C –55 to +125 °CELECTRICAL CHARACTERISTICS
