N0202R - PNP SILICON EPITAXIAL TRANSISTOR

Renesas

Key Features

Complements to N0202S.
VCEO = 20 V.
IC(DC) = 2.0 A.
Miniature package SOT-23F (2SB1114: Package variation of 3pPoMM).

N0202R pnp silicon epitaxial transistor by Renesas - Datasheet Preview

Datasheet Details

Part number	N0202R
Manufacturer	Renesas
File Size	90.74 KB
Description	PNP SILICON EPITAXIAL TRANSISTOR
Datasheet	N0202R Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
N0214	Very high voltage NPN power transistor	STMicroelectronics
N0255WC120	Phase Control Thyristor	Westcode Semiconductors
N0255WC140	Phase Control Thyristor	Westcode Semiconductors
N0255WC160	Phase Control Thyristor	Westcode Semiconductors
N0290SC120	Phase Control Thyristor	IXYS

Other Datasheets by Renesas

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

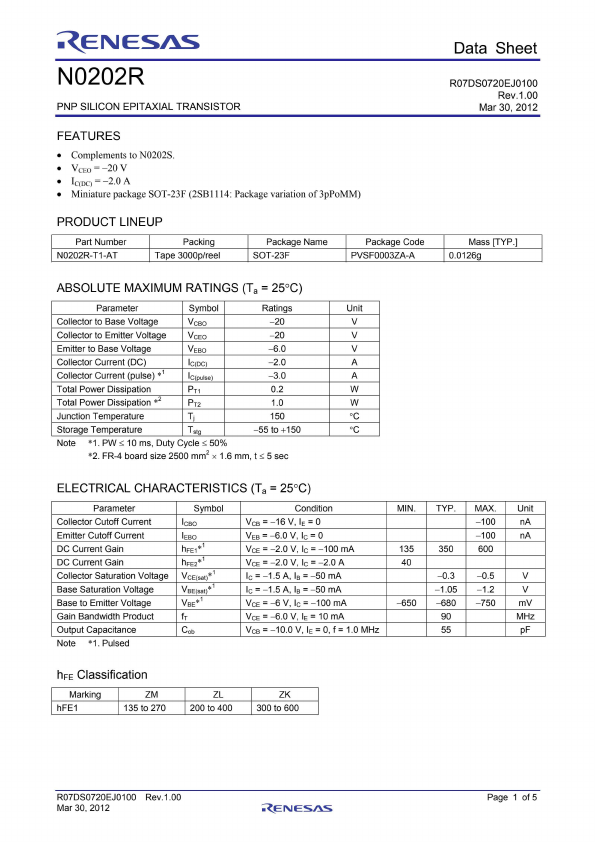

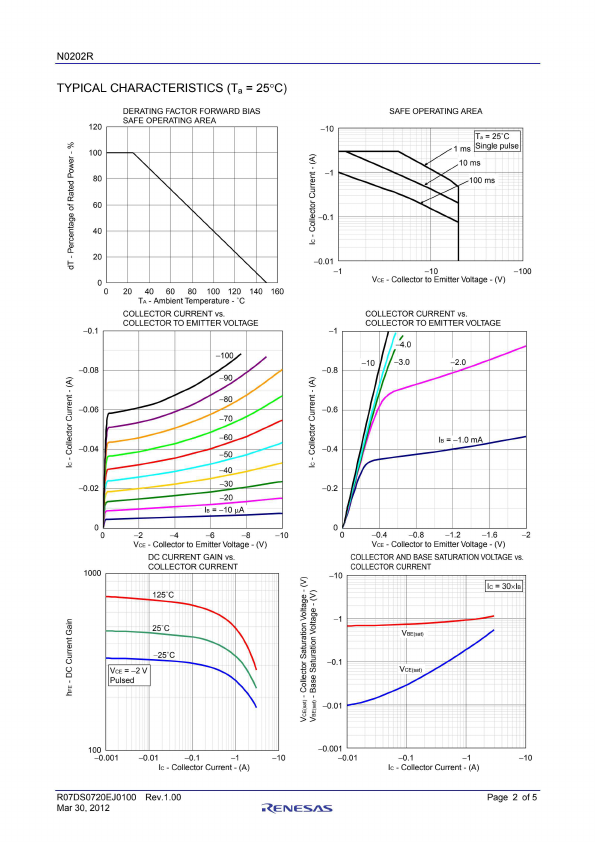

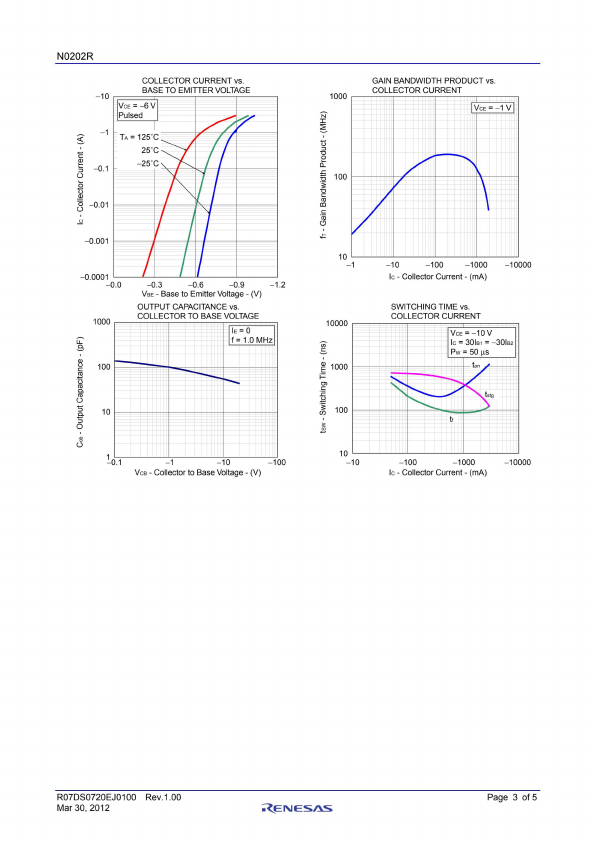

N0202R PNP SILICON EPITAXIAL TRANSISTOR FEATURES  Complements to N0202S.  VCEO = 20 V  IC(DC) = 2.0 A  Miniature package SOT-23F (2SB1114: Package variation of 3pPoMM) PRODUCT LINEUP Part Number N0202R-T1-AT Packing Tape 3000p/reel Package Name SOT-23F Package Code PVSF0003ZA-A Data Sheet R07DS0720EJ0100 Rev.1.00 Mar 30, 2012 Mass [TYP.] 0.0126g ABSOLUTE MAXIMUM RATINGS (Ta = 25C) Parameter Symbol Ratings Unit Collector to Base Voltage VCBO 20 V Collector to Emitter Voltage VCEO 20 V Emitter to Base Voltage VEBO 6.0 V Collector Current (DC) IC(DC) 2.0 A Collector Current (pulse) *1 IC(pulse) 3.0 A Total Power Dissipation PT1 Total Power Dissipation *2 PT2 0.2 W 1.
