R5F56218BDBG
R5F56218BDBG is 100MHz 32-bit RX MCU manufactured by Renesas.
- Part of the R5F562N8BDBG comparator family.
- Part of the R5F562N8BDBG comparator family.

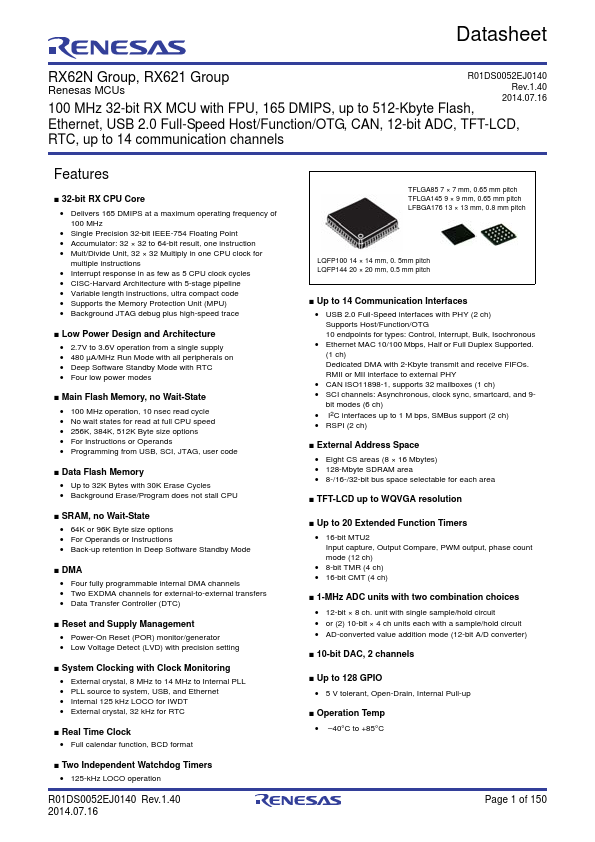

DatasheetDatasheet
RX62N Group, RX621 Group
R01DS0052EJ0140
Renesas MCUs
Rev.1.40
100 MHz 32-bit RX MCU with FPU, 165 DMIPS, up to 512-Kbyte Flash,
Ethernet, USB 2.0 Full-Speed Host/Function/OTG, CAN, 12-bit ADC, TFT-LCD,
RTC, up to 14 munication channels
Features
- 32-bit RX CPU Core
- Delivers 165 DMIPS at a maximum operating frequency of 100 MHz
- Single Precision 32-bit IEEE-754 Floating Point
- Accumulator: 32 × 32 to 64-bit result, one instruction
- Mult/Divide Unit, 32 × 32 Multiply in one CPU clock for multiple instructions
- Interrupt response in as few as 5 CPU clock cycles
- CISC-Harvard Architecture with 5-stage pipeline
- Variable length instructions,...
