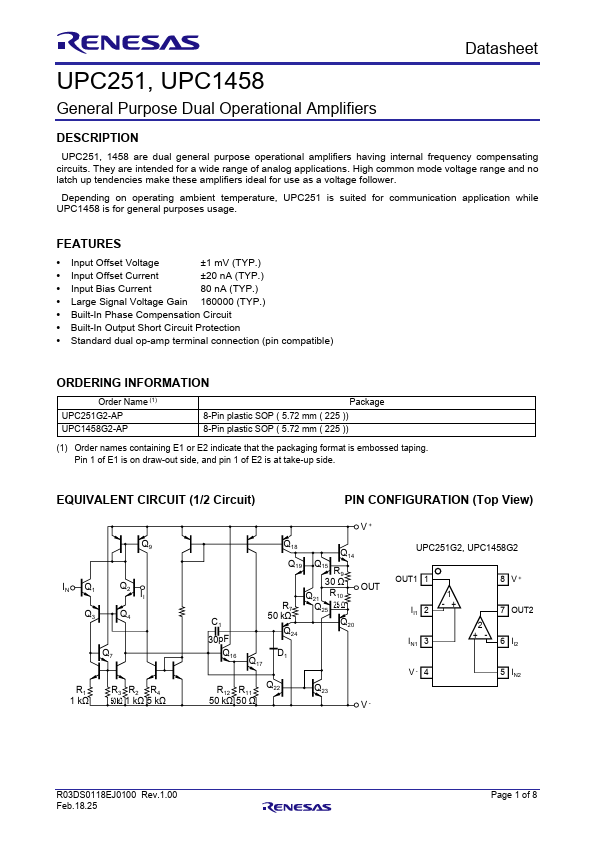

Datasheet Summary
UPC251, UPC1458
General Purpose Dual Operational Amplifiers
DESCRIPTION
UPC251, 1458 are dual general purpose operational amplifiers having internal frequency pensating circuits. They are intended for a wide range of analog applications. High mon mode voltage range and no latch up tendencies make these amplifiers ideal for use as a voltage follower.
Depending on operating ambient temperature, UPC251 is suited for munication application while UPC1458 is for general purposes usage.
Features
- Input Offset Voltage
±1 mV (TYP.)
- Input Offset Current
±20 nA (TYP.)
- Input Bias Current
80 nA (TYP.)
- Large Signal Voltage Gain 160000 (TYP.)
- Built-In Phase...
