Renesas Electronics ZIOL2412

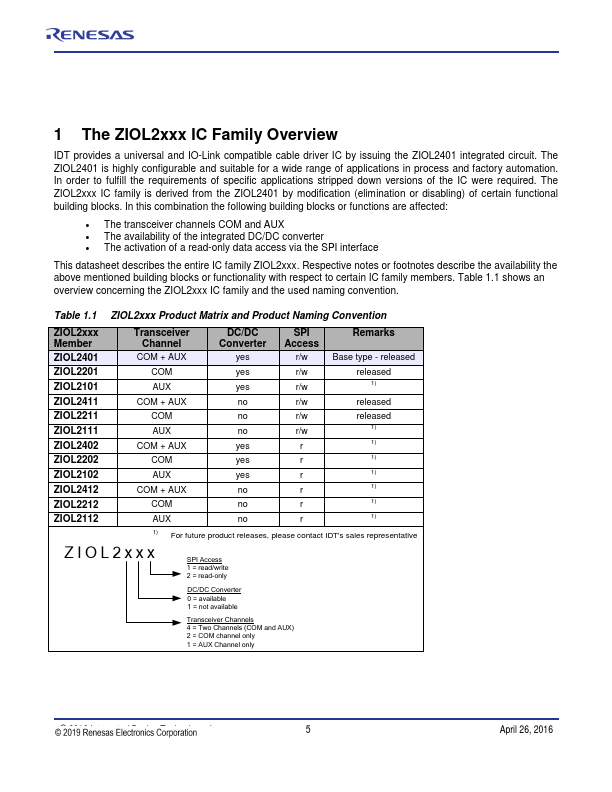

The ZIOL2xxx IC Family Overview IDT provides a universal and IO-Link compatible cable driver IC by issuing the ZIOL2401 integrated circuit. The ZIOL2401 is highly configurable and suitable for a wide range of applications in process and factory automation. The ZIOL2xxx IC family is derived from the ZIOL2401 by modification (elimination or disabling) of certain functional building blocks.| Part No. | ZIOL2412 |
|---|---|
| Datasheet | ZIOL2412 Download |
| Manufacturer |  Renesas Electronics |
| Description | IO-Link Compliant HV-Line Driver |
| Buy | Stock & Price |
ELECTRICAL CHARACTERISTICS
2.1.ABSOLUTE MAXIMUM RATINGS
Parameters apply in operation temperature range and without time limitations. Table 2.1ABSOLUTE MAXIMUM RATINGS
Symbol Parameter VDD_HV VHV VLV Vimp VESD Supply voltage Voltage at HV pins Voltage at LV pins Impulse voltage withstand Abs. ESD test voltage Ts Junction temperature Ta Storage temperature Ptot Average total power dissipation 1) Average die-temperature. 2) Exceptions are the digital input pins (µC interface) which tolerate 5V logic signals (refer to Table 5.1). 3) The allowed total power dissipation depends on the in the PCB design achieved thermal resistance Rth (package/ambient) and the ambient operation temperature as shown in Figure 2.1. In order to obtain optimal heat distribution (Rth < 35K/W) certain PCB layout rules shall be applied. Those rules are described in the application note for the used QFN package (refer to chapter 8, [4]). Min Max Unit Conditions -0.3 40 V -0.3 VDD_HV+0.3 V -0.3 VDD_LV+0.3 V 2) 60 V according to IEC 60947-5-2 2k V according to HBM 125 °C 1) -50 150 °C 2.6 W integration period < 10ms 3) Figure 2.1 Max.
