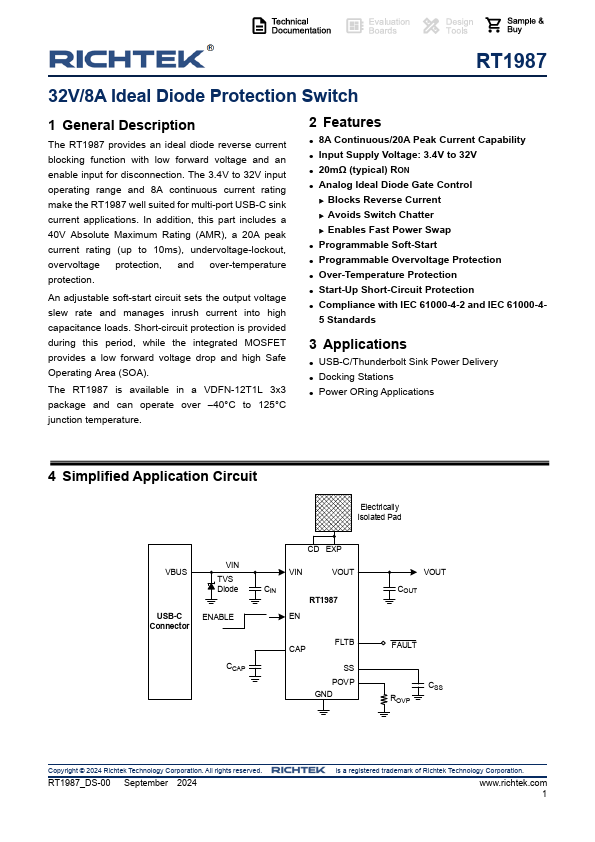

RT1987 Overview
Description
The RT1987 provides an ideal diode reverse current blocking function with low forward voltage and an enable input for disconnection. The 3.4V to 32V input operating range and 8A continuous current rating make the RT1987 well suited for multi-port USB-C sink current applications.
Key Features
- 8A Continuous/20A Peak Current Capability
- Input Supply Voltage: 3.4V to 32V
- 20mΩ (typical) RON
- Analog Ideal Diode Gate Control ï‚„ Blocks Reverse Current ï‚„ Avoids Switch Chatter ï‚„ Enables Fast Power Swap
- Programmable Soft-Start
- Programmable Overvoltage Protection
- Over-Temperature Protection
- Start-Up Short-Circuit Protection
