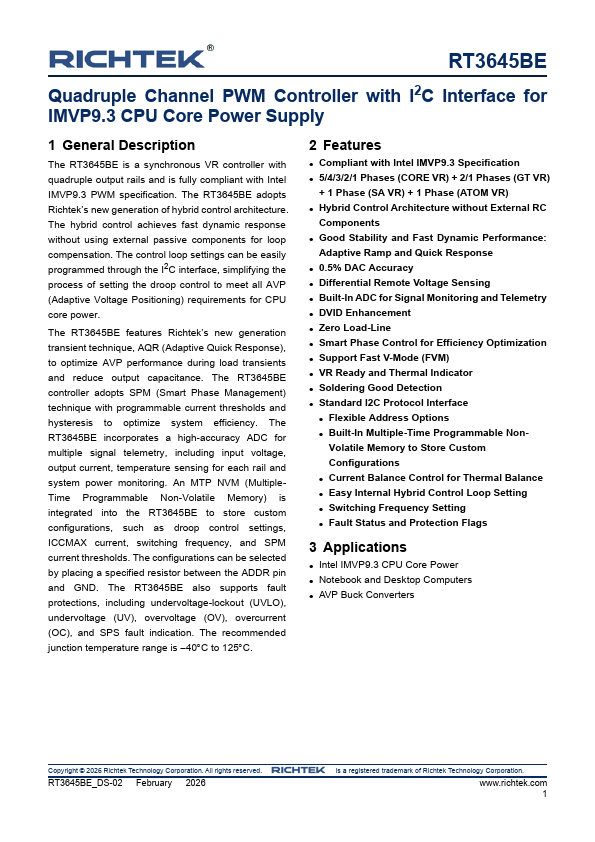

RT3645BE Description
The RT3645BE is a synchronous VR controller with quadruple output rails and is fully pliant with Intel IMVP9.3 PWM specification. The RT3645BE adopts Richtek’s new generation of hybrid control architecture. The hybrid control achieves fast dynamic response without using external passive ponents for loop pensation.
RT3645BE Key Features
- pliant with Intel IMVP9.3 Specification
- 5/4/3/2/1 Phases (CORE VR) + 2/1 Phases (GT VR)
- Hybrid Control Architecture without External RC
- Good Stability and Fast Dynamic Performance
- 0.5% DAC Accuracy
- Differential Remote Voltage Sensing
- Built-In ADC for Signal Monitoring and Telemetry
- DVID Enhancement
- Zero Load-Line
- Smart Phase Control for Efficiency Optimization
