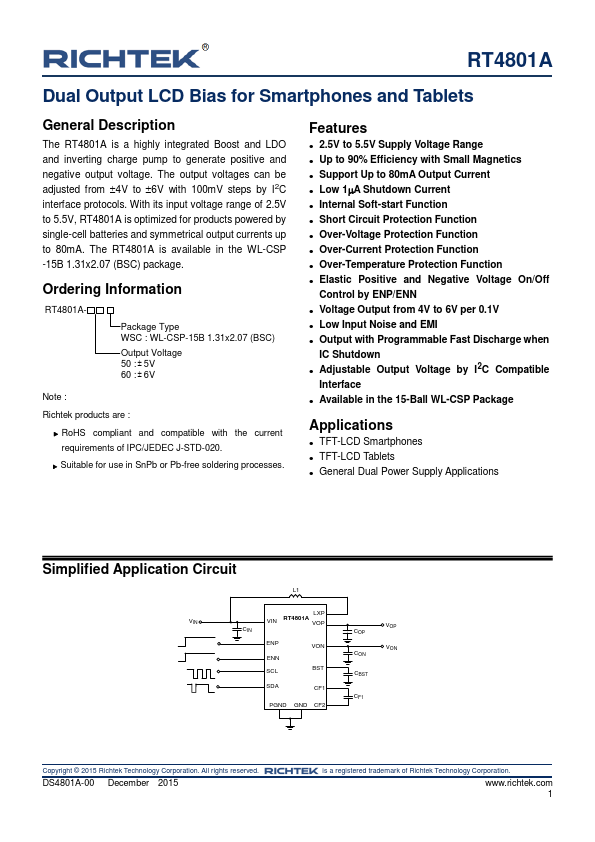

RT4801A
RT4801A is Dual Output LCD manufactured by Richtek.
Dual Output LCD Bias for Smartphones and Tablets
General Description
The RT4801A is a highly integrated Boost and LDO and inverting charge pump to generate positive and negative output voltage. The output voltages can be adjusted from 4V to 6V with 100mV steps by I2C interface protocols. With its input voltage range of 2.5V to 5.5V, RT4801A is optimized for products powered by single-cell batteries and symmetrical output currents up to 80mA. The RT4801A is available in the WL-CSP -15B 1.31x2.07 (BSC) package.
Ordering Information
RT4801APackage Type WSC : WL-CSP-15B 1.31x2.07 (BSC) Output Voltage 50 : 5V 60 : 6V
Note :
Richtek products are :
- RoHS pliant and patible...
