RT5047A - Single Output LNB Supply and Control Voltage Regulator

Description

The RT5047A is a highly integrated voltage regulator and interface IC, specifically design for supplying power and control signals from advanced satellite set-top box (STB) modules to the LNB down-converter in the antenna dish or to the multi-switch box.

Features

  • Wide Input Supply Voltage Range : 8V to 16V.
  • Output Current Limit of 550mA with 45ms timer.
  • Low Noise LNB Output Voltage (13.3V and 18.3V by SEL Pin).
  • 3% High Accuracy for 0mA to 500mA Current Output.
  • Push-Pull Output Stage minimizes 13.3V to 18.3V and 18.3V to 13.3V Output Transition Time.
  • External 22kHz Tone Input.
  • Meet DiSEqCTM1.x Protocol.
  • Output Short Circuit Protection.
  • Over-temperature Protection.

📥 Download Datasheet

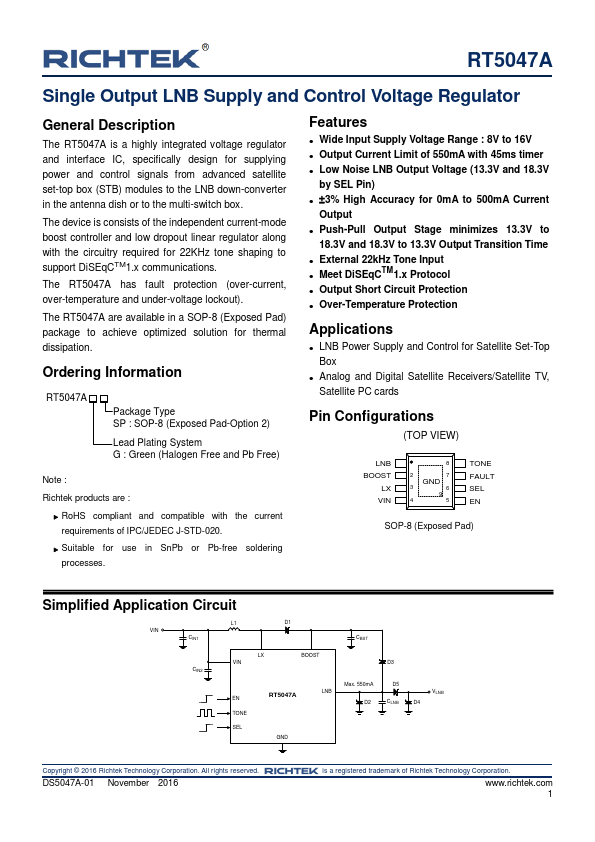

Datasheet preview – RT5047A

Datasheet Details

Part number RT5047A
Manufacturer Richtek
File Size 857.62 KB
Description Single Output LNB Supply and Control Voltage Regulator
Datasheet download datasheet RT5047A Datasheet
Additional preview pages of the RT5047A datasheet.

📁 Similar Datasheet

  • RT5000H - Welding Torch for Robot Coaxial Power Cable for Robot (DAIHEN)
  • RT5000L - Welding Torch for Robot Coaxial Power Cable for Robot (DAIHEN)
  • RT5000S - Welding Torch for Robot Coaxial Power Cable for Robot (DAIHEN)
  • RT5350 - Mini PCI Express Wireless-Module (Ralink)
  • RT5370 - highly integrated MAC/BBP and 2.4-GHz RF/PA/LNA (Ralink)
  • RT5370N - highly integrated MAC/BBP and 2.4GHz RF/PA/LNA (Ralink)
  • RT5390 - Compare IEEE 802.11 b/g/n WLAN (ETC)
  • RT5390 - 802.11b/g/n 1T1R WLAN Manual (MEDIATEK)
  • RT55 - Wirewound Rheostat/Potentiometer (Vishay)
  • RT550PD - Power Transistor (RFHIC)
Other Datasheets by Richtek
  • RT5047 - Single Output LNB Supply and Control Voltage Regulator
  • RT5041AB - MOIC
  • RT5045A - Power Management Unit Total Power Solution
  • RT5002 - 7 + 1 Channel DC/DC PMU
  • RT5002C - 7 + 1 Channel DC/DC PMU
  • RT5006 - Single Output LNB Power Supply Controller
  • RT5007 - Single Output LNB Power Supply Controller
  • RT5014 - 7+6 Channels Power Management

Full PDF Text Transcription

Click to expand full text
RT5047A Single Output LNB Supply and Control Voltage Regulator General Description The RT5047A is a highly integrated voltage regulator and interface IC, specifically design for supplying power and control signals from advanced satellite set-top box (STB) modules to the LNB down-converter in the antenna dish or to the multi-switch box. The device is consists of the independent current-mode boost controller and low dropout linear regulator along with the circuitry required for 22KHz tone shaping to support DiSEqCTM1.x communications. The RT5047A has fault protection (over-current, over-temperature and under-voltage lockout). The RT5047A are available in a SOP-8 (Exposed Pad) package to achieve optimized solution for thermal dissipation.
