RT6220 - Synchronous Buck Converter

Datasheet Summary

Description

The RT6220 is a synchronous buck converter with Advanced Constant On-Time (ACOT® ) mode control, which provides a very fast transient response with no external compensators.

Features

4.5V to 23V Input Voltage Range.
Adjustable from 0.6V to 5V Output Range.
Up to 98% Duty for 2S Battery.

Richtek

📥 Download Datasheet

Datasheet Details

Part number	RT6220
Manufacturer	Richtek
File Size	1.49 MB
Description	Synchronous Buck Converter
Datasheet	RT6220 Datasheet

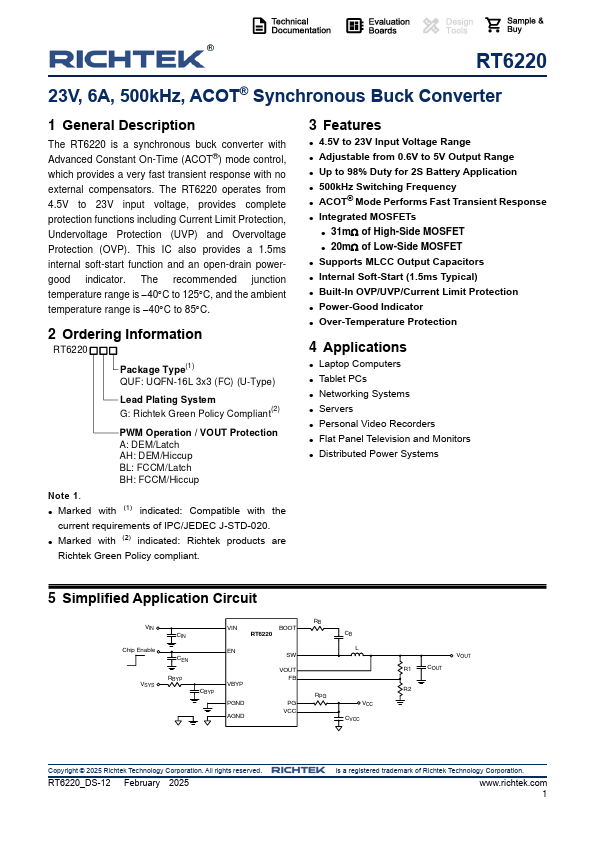

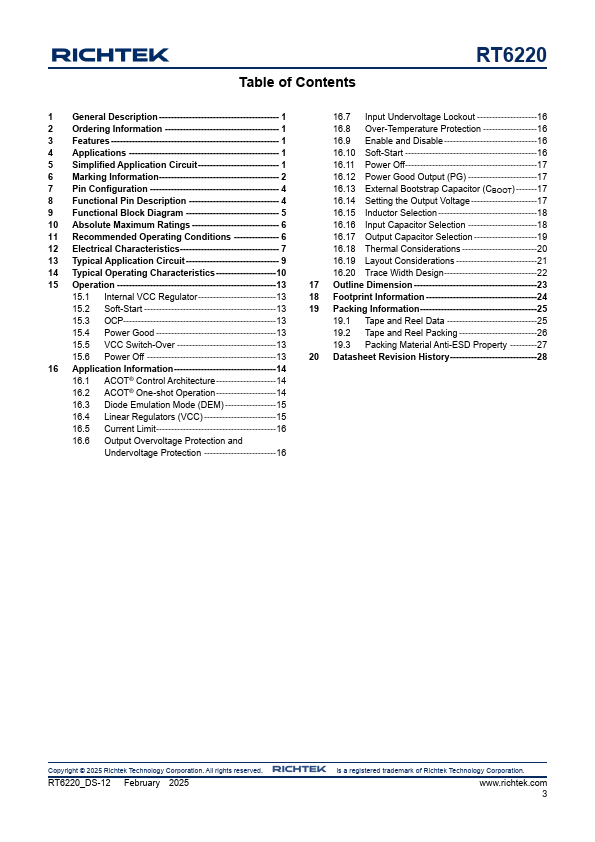

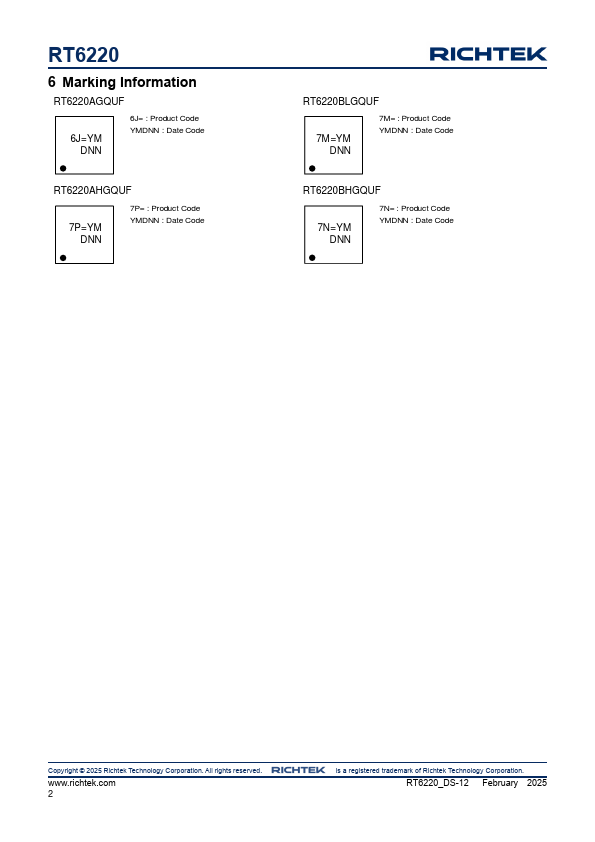

Additional preview pages of the RT6220 datasheet.
