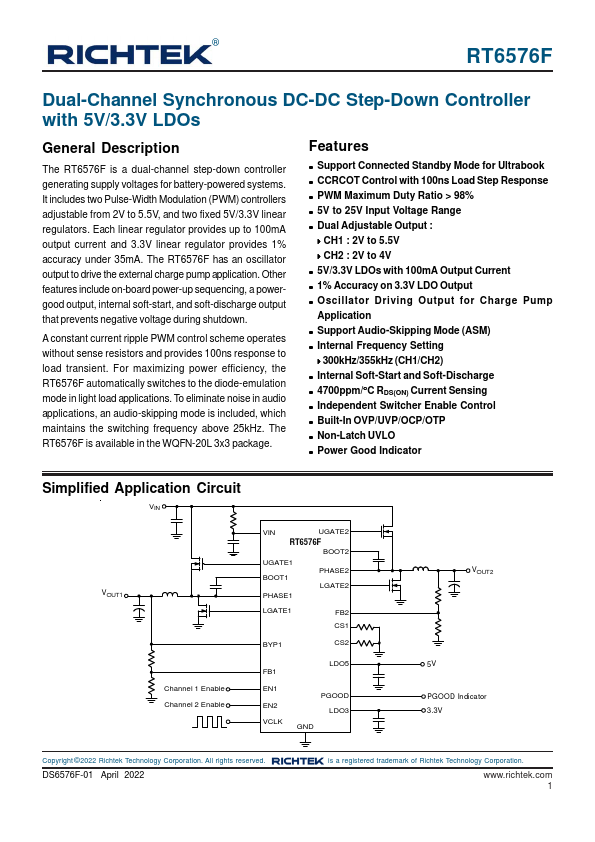

® Dual-Channel Synchronous DC-DC Step-Down Controller with 5V/3.3V LDOs General Description The RT6576F is a dual-channel step-down controller generating supply voltages for battery-powered systems. It includes two Pulse-Width Modulation (PWM) controllers adjustable from 2V to 5.5V, and two fixed 5V/3.3V linear regulators. Each linear regulator provides up to 100m A output current and 3.3V linear regulator provides 1% accuracy under 35m A. The RT6576F has an oscillator output to drive the external charge pump application. Other Features include on-board power-up sequencing, a powergood output, internal soft-start, and soft-discharge output that prevents negative voltage during shutdown. A constant current ripple PWM control scheme operates without sense resistors and provides 100ns response to load transient. For maximizing power efficiency, the RT6576F automatically switches to the diode-emulation mode in light load applications. To eliminate noise in audio applications, an audio-skipping mode is included, which maintains the switching frequency above 25k Hz. The RT6576F is available in the WQFN-20L 3x3 package. Features - Support Connected Standby Mode for Ultrabook - CCRCOT Control with 100ns Load Step Response - PWM Maximum Duty Ratio > 98% - 5V to 25V Input Voltage Range - Dual Adjustable Output :  CH1 : 2V to 5.5V  CH2 : 2V to 4V - 5V/3.3V LDOs with 100m A Output Current - 1% Accuracy on 3.3V LDO Output - Oscillator Driving Output for Charge Pump Application - Support Audio-Skipping Mode (ASM) - Internal Frequency Setting  300k Hz/355k Hz (CH1/CH2) - Internal Soft-Start and Soft-Discharge - 4700ppm/°C RDS(ON) Current Sensing - Independent Switcher Enable Control - Built-In OVP/UVP/OCP/OTP - Non-Latch UVLO - Power Good Indicator Simplified Application Circuit VOUT1 Channel 1 Enable Channel 2 Enable UGATE2 BOOT2 UGATE1 BOOT1 PHASE2...
