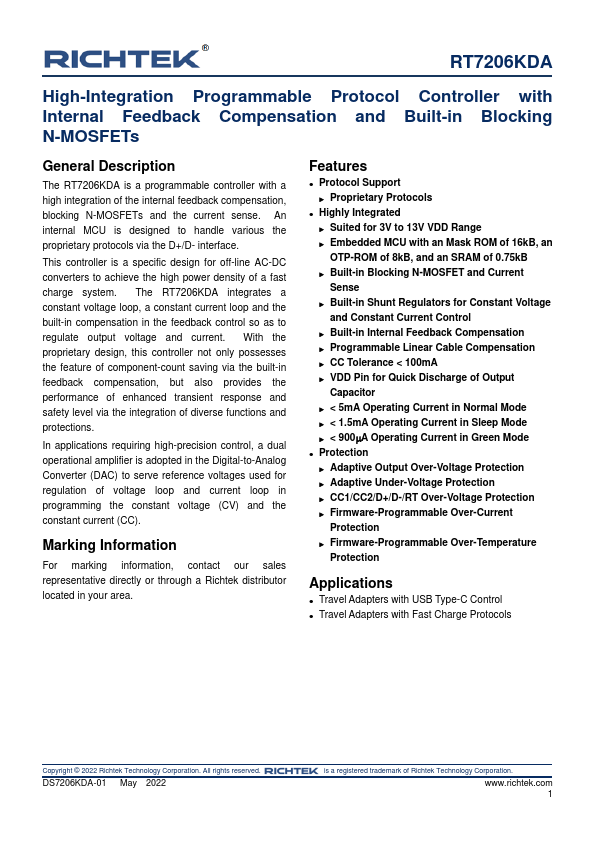

RT7206KDA
Description
The RT7206KDA is a programmable controller with a high integration of the internal feedback compensation, blocking N-MOSFETs and the current sense. An internal MCU is designed to handle various the proprietary protocols via the D+/D- interface.
Key Features
- Protocol Support Proprietary Protocols
- Highly Integrated Suited for 3V to 13V VDD Range Embedded MCU with an Mask ROM of 16kB, an OTP-ROM of 8kB, and an SRAM of 0.75kB Built-in Blocking N-MOSFET and Current Sense Built-in Shunt Regulators for Constant Voltage and Constant Current Control Built-in Internal Feedback Compensation Programmable Linear Cable Compensation CC Tolerance < 100mA VDD Pin for Quick Discharge of Output Capacitor < 5mA Operating Current in Normal Mode < 1.5mA Operating Current in Sleep Mode < 900A Operating Current in Green Mode
- Protection Adaptive Output Over-Voltage Protection Adaptive Under-Voltage Protection CC1/CC2/D+/D-/RT Over-Voltage Protection Firmware-Programmable Over-Current Protection Firmware-Programmable Over-Temperature Protection
