RT8120H - Single-Phase Synchronous Buck PWM Controller

Product Overview

Richtek

Part number	RT8120H
Manufacturer	Richtek
File Size	206.68 KB
Description	Single-Phase Synchronous Buck PWM Controller
Datasheet	RT8120H Datasheet
Note	This datasheet PDF includes multiple part numbers: RT8120H, RT8120G. Please refer to the document for exact specifications by model.

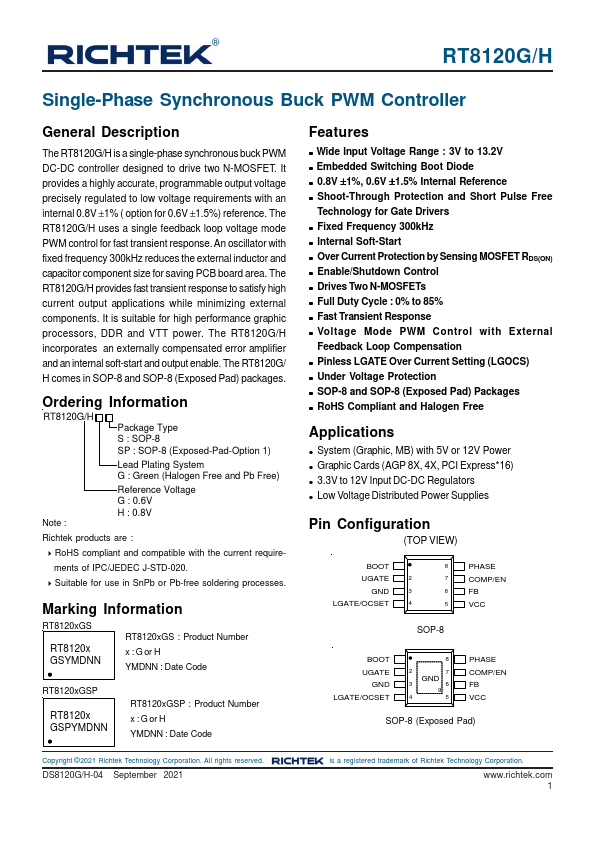

Additional preview pages of the RT8120H datasheet.

The RT8120G/H is a single-phase synchronous buck PWM DC/DC controller designed to drive two N-MOSFET.

z Wide Input Voltage Range : 3V to 13.2V z Embedded Switching Boot Diode z 0.8V ±1%, 0.6V ±1.5% Internal Reference z Shoot-Through Protection and Short Pulse Free Technology for Gate Drivers z Fixed Frequency 300kHz z Internal Soft-Start z Over Current Protection by Sensing MOSFET RDS(ON) z Enable/Shutdown Control z Drives Two N-MOSFETs z Full Duty Cycle : 0% to 85% z Fast Transient Response z Voltage Mode PWM Control with External Feedback Loop Compensation z Pinless LGATE Over Current Setting.
