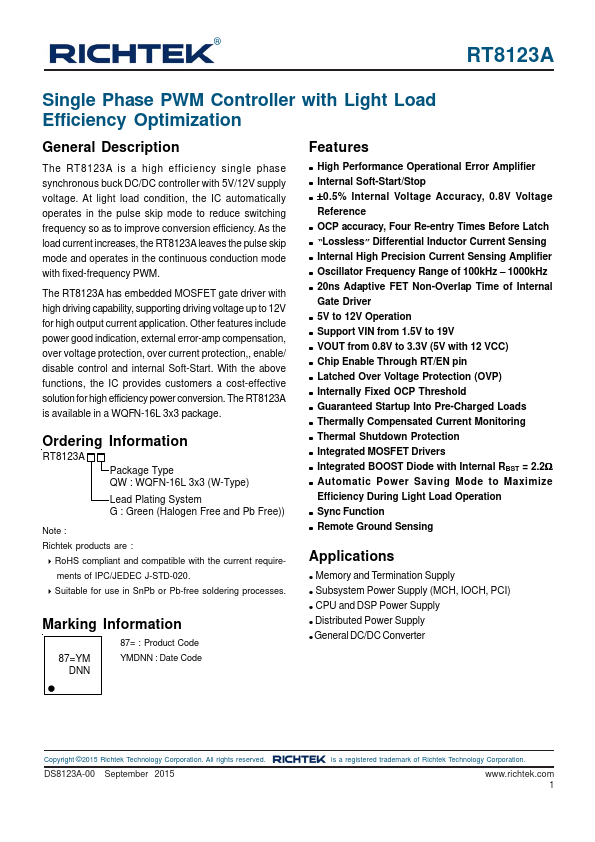

RT8123A Description
The RT8123A is a high efficiency single phase synchronous buck DC/DC controller with 5V/12V supply voltage. At light load condition, the IC automatically operates in the pulse skip mode to reduce switching frequency so as to improve conversion efficiency. As the load current increases, the RT8123A leaves the pulse skip mode and operates in the continuous conduction mode with fixed-frequency PWM.
RT8123A Key Features
- High Performance Operational Error Amplifier
- Internal Soft-Start/Stop
- ±0.5% Internal Voltage Accuracy, 0.8V Voltage
- OCP accuracy, Four Re-entry Times Before Latch
- Internal High Precision Current Sensing Amplifier
- Oscillator Frequency Range of 100kHz
- 1000kHz
- 20ns Adaptive FET Non-Overlap Time of Internal
- 5V to 12V Operation
