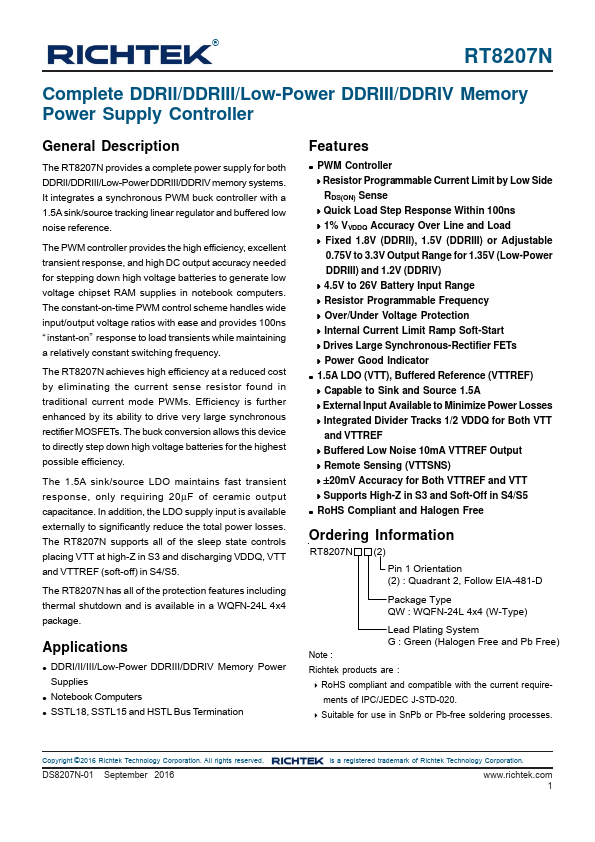

® RT8207N plete DDRII/DDRIII/Low-Power DDRIII/DDRIV Memory Power Supply Controller General Description The RT8207N provides a plete power supply for both DDRII/DDRIII/Low-Power DDRIII/DDRIV memory systems. It integrates a synchronous PWM buck controller with a 1.5A sink/source tracking linear regulator and buffered low noise reference. The PWM controller provides the high efficiency, excellent transient response, and high DC output accuracy needed for stepping down high voltage batteries to generate low voltage chipset RAM supplies in notebook puters. The constant-on-time PWM control scheme handles wide input/output voltage ratios with ease and provides 100ns “instant-on” response to load transients while maintaining a relatively constant switching frequency. The RT8207N achieves high efficiency at a reduced cost by eliminating the current sense resistor found in traditional current mode PWMs. Efficiency is further enhanced by its ability to drive very large synchronous rectifier MOSFETs. The buck conversion allows this device to directly step down high voltage batteries for the highest possible efficiency. The 1.5A sink/source LDO maintains fast transient response, only requiring 20μF of ceramic output capacitance. In addition, the LDO supply input is available externally to significantly reduce the total power losses. The RT8207N supports all of the sleep state controls placing VTT at high-Z in S3 and discharging VDDQ, VTT and VTTREF (soft-off) in S4/S5. The RT8207N has all of the protection Features including thermal shutdown and is available in a WQFN-24L 4x4 package. Applications - DDRI/II/III/Low-Power DDRIII/DDRIV Memory Power Supplies - Notebook puters - SSTL18, SSTL15 and HSTL Bus Termination Features - PWM Controller  Resistor Programmable Current Limit by Low Side RDS(ON) Sense  Quick Load Step Response Within 100ns  1% VVDDQ Accuracy Over Line and Load  Fixed 1.8V (DDRII), 1.5V (DDRIII) or Adjustable 0.75V to 3.3V Output Range for...
