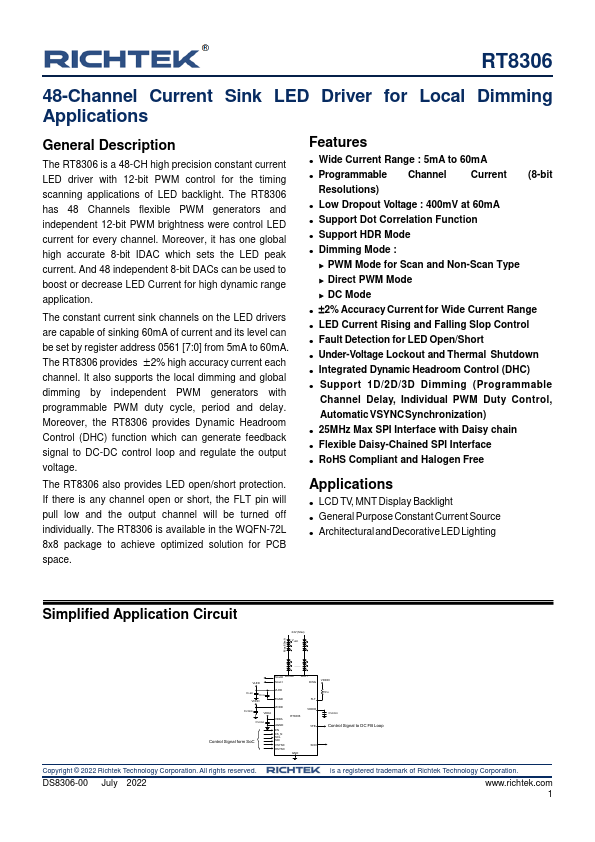

RT8306
Overview
The RT8306 is a 48-CH high precision constant current LED driver with 12-bit PWM control for the timing scanning applications of LED backlight. The RT8306 has 48 Channels flexible PWM generators and independent 12-bit PWM brightness were control LED current for every channel.
- Wide Current Range : 5mA to 60mA
- Programmable Channel Current (8-bit Resolutions)
- Low Dropout Voltage : 400mV at 60mA
- Support Dot Correlation Function
- Support HDR Mode
- Dimming Mode : PWM Mode for Scan and Non-Scan Type Direct PWM Mode DC Mode
- ±2% Accuracy Current for Wide Current Range
- LED Current Rising and Falling Slop Control
- Fault Detection for LED Open/Short
- Under-Voltage Lockout and Thermal Shutdown
