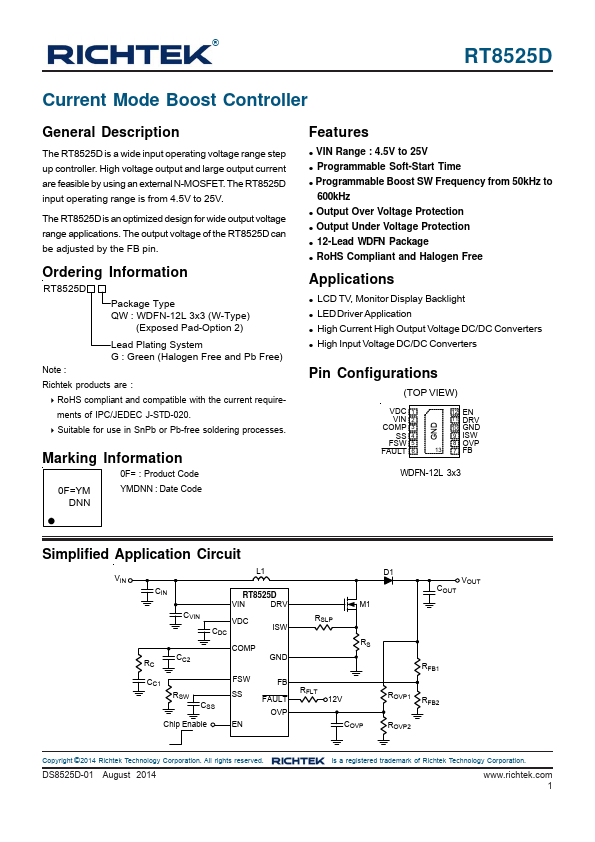

RT8525D
RT8525D is Current Mode Boost Controller manufactured by Richtek.
Description
The RT8525D is a wide input operating voltage range step up controller. High voltage output and large output current are feasible by using an external N-MOSFET. The RT8525D input operating range is from 4.5V to 25V.
The RT8525D is an optimized design for wide output voltage range applications. The output voltage of the RT8525D can be adjusted by the FB pin.
Ordering Information
Package Type QW : WDFN-12L 3x3 (W-Type)
(Exposed Pad-Option 2)
Note :
Lead Plating System G : Green (Halogen Free and Pb Free)
Richtek products are :
Ro HS pliant and patible with the current require- ments of IPC/JEDEC J-STD-020.
Suitable for use in Sn Pb or Pb-free soldering processes.
Marking Information
0F= : Product Code
0F=YM DNN
YMDNN : Date Code
Features
- VIN Range : 4.5V to 25V
- Programmable Soft-Start Time
- Programmable Boost SW Frequency from 50k Hz to
600k Hz
- Output Over Voltage Protection
- Output Under Voltage Protection
- 12-Lead WDFN Package
- Ro HS pliant and Halogen Free
Applications
- LCD TV, Monitor Display Backlight
- LEDDriver Application
- High Current High Output Voltage DC/DC Converters
- High Input Voltage DC/DC Converters
Pin Configurations
(TOP VIEW)
VDC 1 VIN 2 P 3 SS 4 FSW 5 FAULT 6
12 EN 11 DRV 10 GND 9 ISW 8 OVP 13 7 FB
WDFN-12L 3x3
Simplified Application Circuit
L1 VIN
CVIN
VDC...
