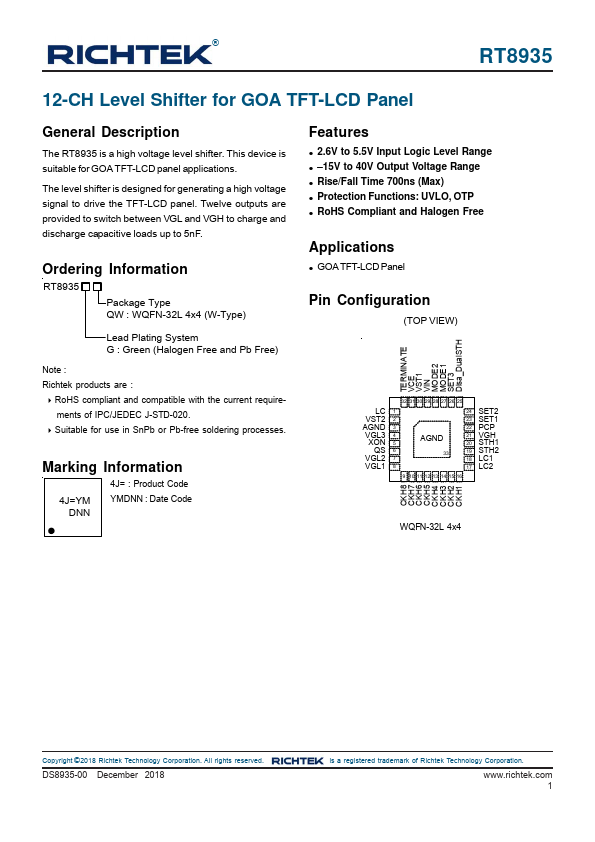

RT8935
RT8935 is 12-CH Level Shifter manufactured by Richtek.
®
12-CH Level Shifter for GOA TFT-LCD Panel
General Description
The RT8935 is a high voltage level shifter. This device is suitable for GOA TFT-LCD panel applications.
The level shifter is designed for generating a high voltage signal to drive the TFT-LCD panel. Twelve outputs are provided to switch between VGL and VGH to charge and discharge capacitive loads up to 5nF.
Ordering Information
RT8935 Package Type QW : WQFN-32L 4x4 (W-Type)
Lead Plating System G : Green (Halogen Free and Pb Free)
Note : Richtek products are :
RoHS pliant and patible with the current requirements of IPC/JEDEC J-STD-020.
Suitable for use in SnPb or Pb-free soldering processes.
Marking...
