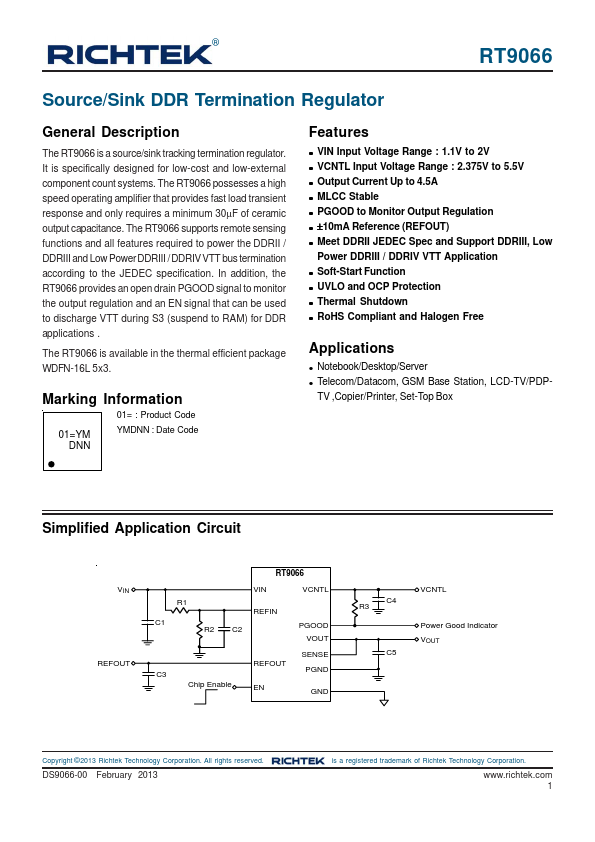

RT9066
RT9066 is Source/Sink DDR Termination Regulator manufactured by Richtek.
®
Source/Sink DDR Termination Regulator
General Description
The RT9066 is a source/sink tracking termination regulator. It is specifically designed for low-cost and low-external ponent count systems. The RT9066 possesses a high speed operating amplifier that provides fast load transient response and only requires a minimum 30μF of ceramic output capacitance. The RT9066 supports remote sensing functions and all Features required to power the DDRII / DDRIII and Low Power DDRIII / DDRIV VTT bus termination according to the JEDEC specification. In addition, the RT9066 provides an open drain PGOOD signal to monitor the output regulation and an EN signal that can be used to discharge...
