RT9624D Datasheet Single Phase Synchronous Rectified Buck MOSFET Driver

Manufacturer: Richtek

Overview: ® RT9624D Single Phase Synchronous Rectified Buck MOSFET Driver.

RT9624D single phase synchronous rectified buck mosfet driver by Richtek - Datasheet Preview

Datasheet Details

Part number	RT9624D
Manufacturer	Richtek
File Size	149.72 KB
Description	Single Phase Synchronous Rectified Buck MOSFET Driver
Download	RT9624D Download (PDF)

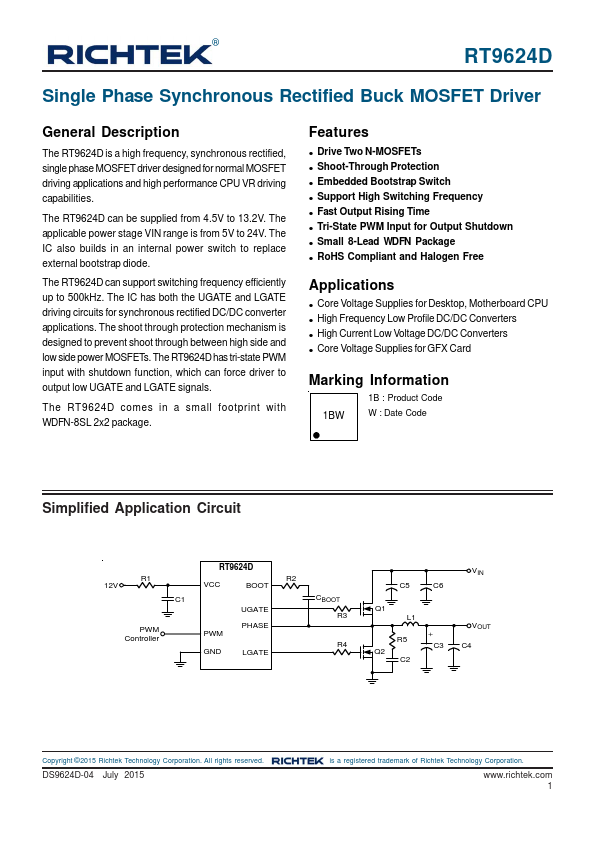

General Description

The RT9624D is a high frequency, synchronous rectified, single phase MOSFET driver designed for normal MOSFET driving applications and high performance CPU VR driving capabilities.

The RT9624D can be supplied from 4.5V to 13.2V.

The applicable power stage VIN range is from 5V to 24V.

Key Features

Drive Two N-MOSFETs.
Shoot-Through Protection.
Embedded Bootstrap Switch.
Support High Switching Frequency.
Fast Output Rising Time.
Tri-State PWM Input for Output Shutdown.
Small 8-Lead WDFN Package.
RoHS Compliant and Halogen Free.
