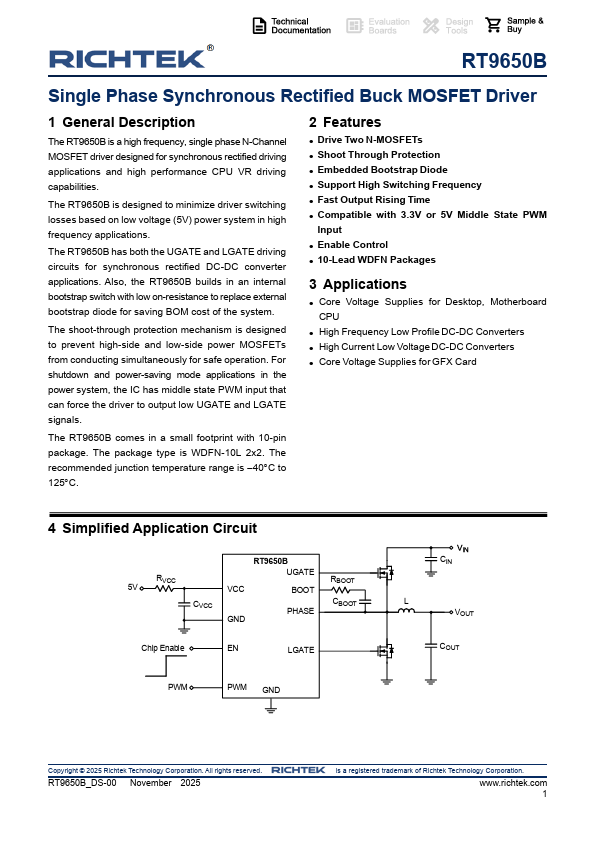

Datasheet Summary
Single Phase Synchronous Rectified Buck MOSFET Driver
1 General Description
The RT9650B is a high frequency, single phase N-Channel MOSFET driver designed for synchronous rectified driving applications and high performance CPU VR driving capabilities.
The RT9650B is designed to minimize driver switching losses based on low voltage (5V) power system in high frequency applications.
The RT9650B has both the UGATE and LGATE driving circuits for synchronous rectified DC-DC converter applications. Also, the RT9650B builds in an internal bootstrap switch with low on-resistance to replace external bootstrap diode for saving BOM cost of the system.
The shoot-through protection mechanism...
