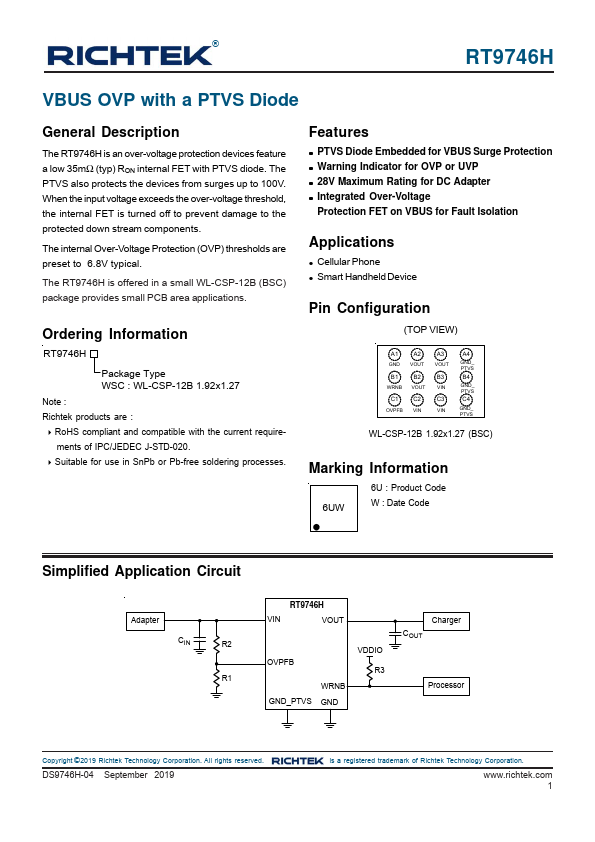

RT9746H
RT9746H is manufactured by Richtek.
®
VBUS OVP with a PTVS Diode
General Description
The RT9746H is an over-voltage protection devices feature a low 35mΩ (typ) RON internal FET with PTVS diode. The PTVS also protects the devices from surges up to 100V. When the input voltage exceeds the over-voltage threshold, the internal FET is turned off to prevent damage to the protected down stream ponents.
The internal Over-Voltage Protection (OVP) thresholds are preset to 6.8V typical.
The RT9746H is offered in a small WL-CSP-12B (BSC) package provides small PCB area applications.
Ordering Information
Package Type WSC : WL-CSP-12B 1.92x1.27
Note : Richtek products are :
RoHS pliant and patible with the...
