RTQ1950 Datasheet | Richtek

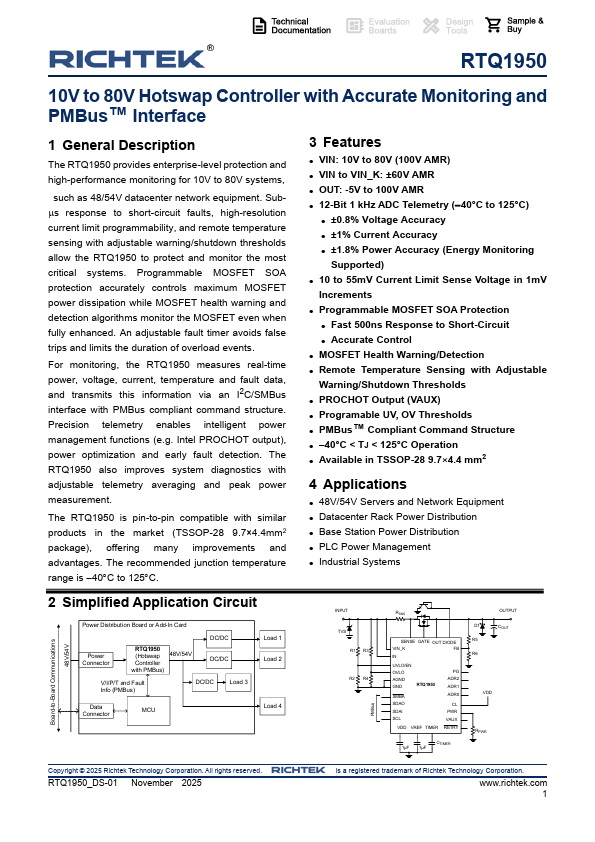

10V to 80V Hotswap Controller with Accurate Monitoring and PMBus™ Interface 1 General Description The RTQ1950 provides enterprise-level protection and high-performance monitoring for 10V to 80V systems, such as 48/54V datacenter network equipment. Subs response to short-circuit faults, high-resolution current limit programmability, and remote temperature sensing with adjustable warning/shutdown thresholds allow the RTQ1950 to protect and monitor the most critical systems. Programmable MOSFET SOA protection accurately controls maximum MOSFET power dissipation while MOSFET health warning and detection algorithms monitor the MOSFET even when fully enhanced. An adjustable fault...
