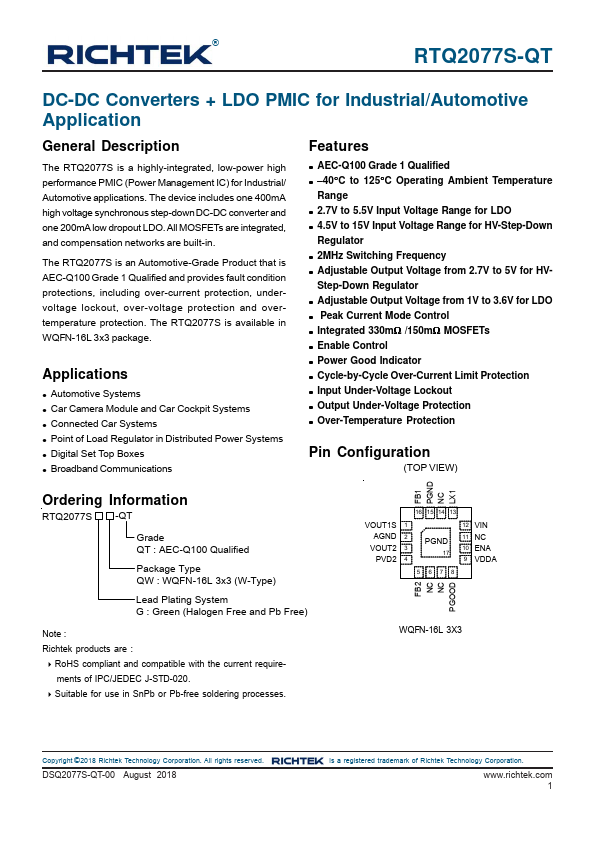

RTQ2077S-QT Overview
Description
The RTQ2077S is a highly-integrated, low-power high performance PMIC (Power Management IC) for Industrial/ Automotive applications. The device includes one 400mA high voltage synchronous step-down DC-DC converter and one 200mA low dropout LDO.
Key Features
- AEC-Q100 Grade 1 Qualified
- 40°C to 125°C Operating Ambient Temperature Range
- 2.7V to 5.5V Input Voltage Range for LDO
- 4.5V to 15V Input Voltage Range for HV-Step-Down Regulator
- 2MHz Switching Frequency
- Adjustable Output Voltage from 2.7V to 5V for HV- Step-Down Regulator
- Adjustable Output Voltage from 1V to 3.6V for LDO
- Peak Current Mode Control
- Integrated 330mΩ /150mΩ MOSFETs
- Enable Control
