RTQ2082-QT - Automotive CIS/CCM PMIC

General Description

The RTQ2082-QT is a highly integrated PMIC designed for automotive camera applications.

It includes three step-down converters and one high PSRR low-dropout (LDO) regulator.

Key Features

  • AEC-Q100 Grade 1 Qualified.
  • FMEA Compliant Pin Placement and Protection Mechanisms.
  • Three Step-Down Converters (HVBuck1, LVBuck2, and LVBuck3).
  • Peak Current Mode PWM Operation.
  • Fixed Switching Frequency at 2.1MHz.
  • EMI Reduction Features including Spread Spectrum and Phase-Shift Operation.
  • HVBuck1 Supports Input Voltage from 4V to 18.5V, Adjustable Output Voltage, and up to 1.5A Output Current.
  • LVBuck2 Supports Input Voltage from 2.7V to 5V, Fixed Output V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RTQ020N03 MOSFET Rohm
RTQ020N05 Nch 45V 2A Power MOSFET Rohm
RTQ025P02 DC-DC Converter (20V/ 2.5A) Rohm
RTQ030P02 DC-DC Converter (20V/ 3.0A) Rohm
RTQ030P02TR DC-DC Converter (20V/ 3.0A) Rohm

Other Datasheets by Richtek

Part Number Description
RTQ2080-QF Functional Safety PMIC
RTQ2081-QF Functional Safety PMIC
RTQ2071-QA Automotive CIS/CCM PMIC
RTQ2072-QA Automotive CIS/CCM PMIC
RTQ2072-QT Automotive CIS/CCM PMIC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

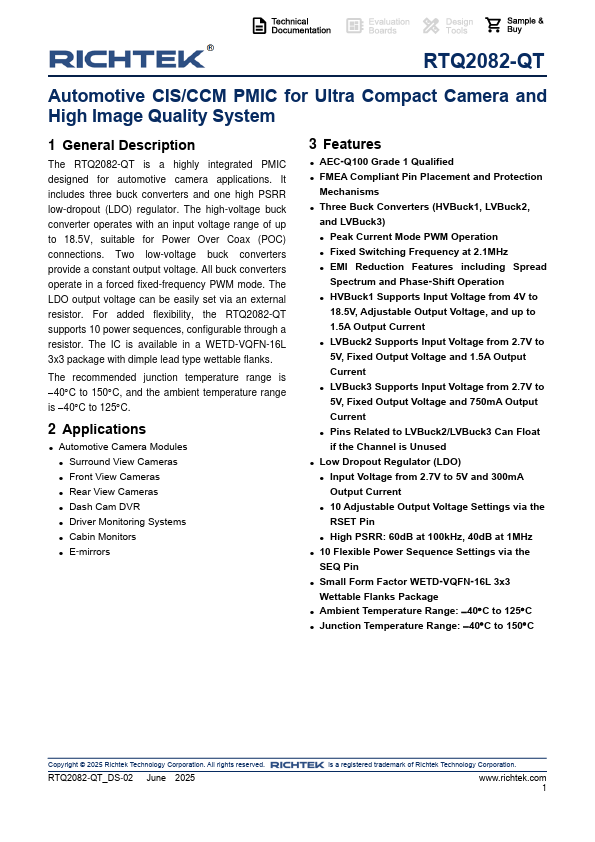

RTQ2082-QT Automotive CIS/CCM PMIC for Ultra Compact Camera and High Image Quality System 1 General Description The RTQ2082-QT is a highly integrated PMIC designed for automotive camera applications. It includes three step-down converters and one high PSRR low-dropout (LDO) regulator. The high-voltage step-down converter operates with an input voltage range of up to 18.5V, suitable for Power Over Coax (POC) connections. Two low-voltage step-down converters provide a constant output voltage. All step-down converters operate in a forced fixed-frequency PWM mode. The LDO output voltage can be easily set via an external resistor. For added flexibility, the RTQ2082-QT supports 10 power sequences, configurable through a resistor.
