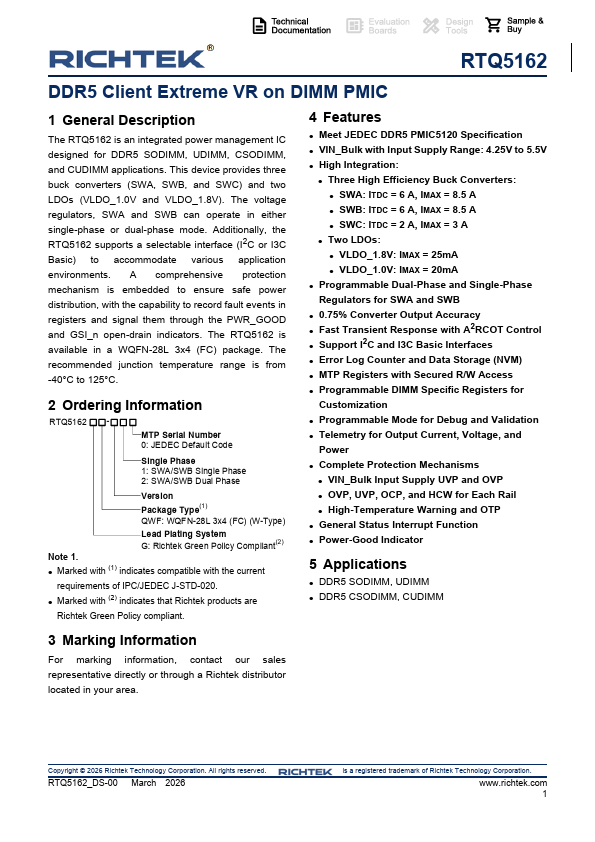

RTQ5162 Overview
Description
The RTQ5162 is an integrated power management IC designed for DDR5 SODIMM, UDIMM, CSODIMM, and CUDIMM applications. This device provides three buck converters (SWA, SWB, and SWC) and two LDOs (VLDO_1.0V and VLDO_1.8V).
Key Features
- Meet JEDEC DDR5 PMIC5120 Specification
- VIN_Bulk with Input Supply Range: 4.25V to 5.5V
- High Integration
- Three High Efficiency Buck Converters
- SWA: ITDC = 6 A, IMAX = 8.5 A
- SWB: ITDC = 6 A, IMAX = 8.5 A
- SWC: ITDC = 2 A, IMAX = 3 A
- VLDO_1.8V: IMAX = 25mA
- VLDO_1.0V: IMAX = 20mA
- Programmable Dual-Phase and Single-Phase Regulators for SWA and SWB
