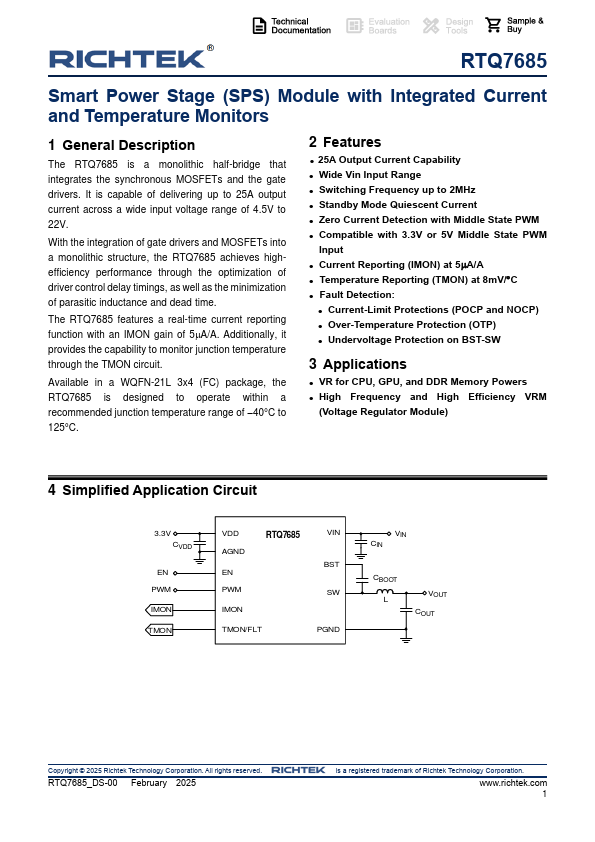

Smart Power Stage (SPS) Module with Integrated Current and Temperature Monitors 1 General Description The RTQ7685 is a monolithic half-bridge that integrates the synchronous MOSFETs and the gate drivers. It is capable of delivering up to 25A output current across a wide input voltage range of 4.5V to 22V. With the integration of gate drivers and MOSFETs into a monolithic structure, the RTQ7685 achieves highefficiency performance through the optimization of driver control delay timings, as well as the minimization of parasitic inductance and dead time. The RTQ7685 Features a real-time current reporting function with an IMON gain of 5A/A. Additionally, it provides the capability...
