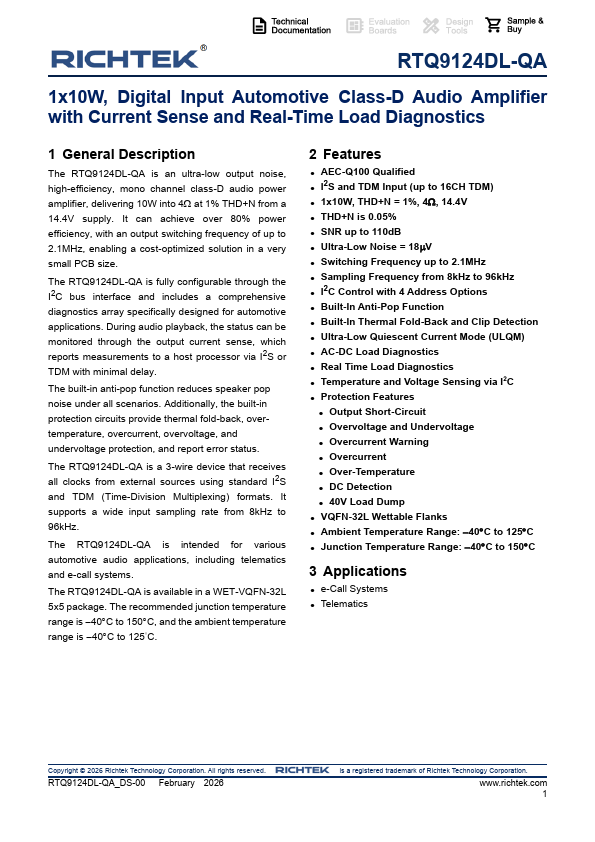

RTQ9124DL-QA Description
The RTQ9124DL-QA is an ultra-low output noise, high-efficiency, mono channel class-D audio power amplifier, delivering 10W into 4 at 1% THD+N from a 14.4V supply. It can achieve over 80% power efficiency, with an output switching frequency of up to 2.1MHz, enabling a cost-optimized solution in a very small PCB size. The RTQ9124DL-QA is fully configurable through the I2C bus interface and includes a prehensive...
RTQ9124DL-QA Key Features
- AEC-Q100 Qualified
- I2S and TDM Input (up to 16CH TDM)
- 1x10W, THD+N = 1%, 4, 14.4V
- THD+N is 0.05%
- SNR up to 110dB
- Ultra-Low Noise = 18V
- Switching Frequency up to 2.1MHz
- Sampling Frequency from 8kHz to 96kHz
- I2C Control with 4 Address Options
- Built-In Anti-Pop Function
